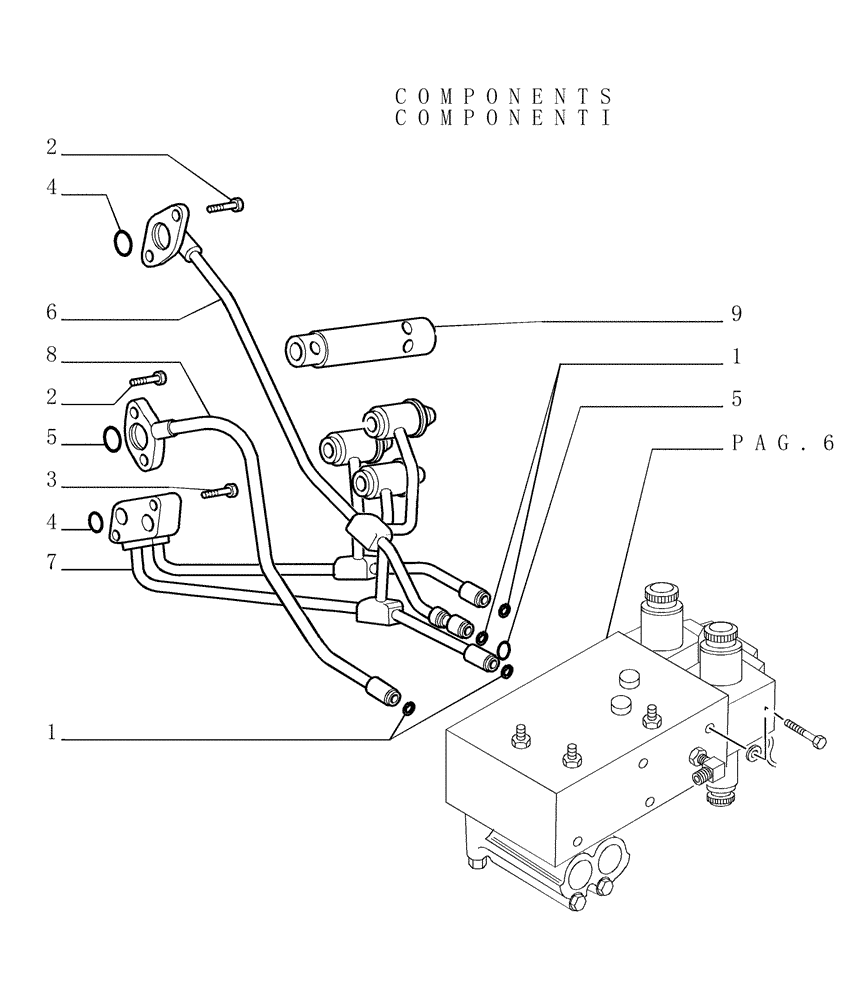

Запчасти Case 1850K (1.211[07]) - TRANSMISSION - PIPING Hydrostatic Transmission

1

586832

CIRCLIP

4шт.

2

10902534

SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd

4шт.

3

10903234

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

4

14456881

O-RING,0.362" ID x 0.103" Width

(M9.19 ID x 2.62 Thk)

3шт.

5

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

6

79038794

TUBE

1шт.

7

79038800

TUBE

1шт.

8

79040811

TUBE

1шт.

9

76073483

HYDRAULIC VALVE

Assy, See Pg. 9

3шт.
