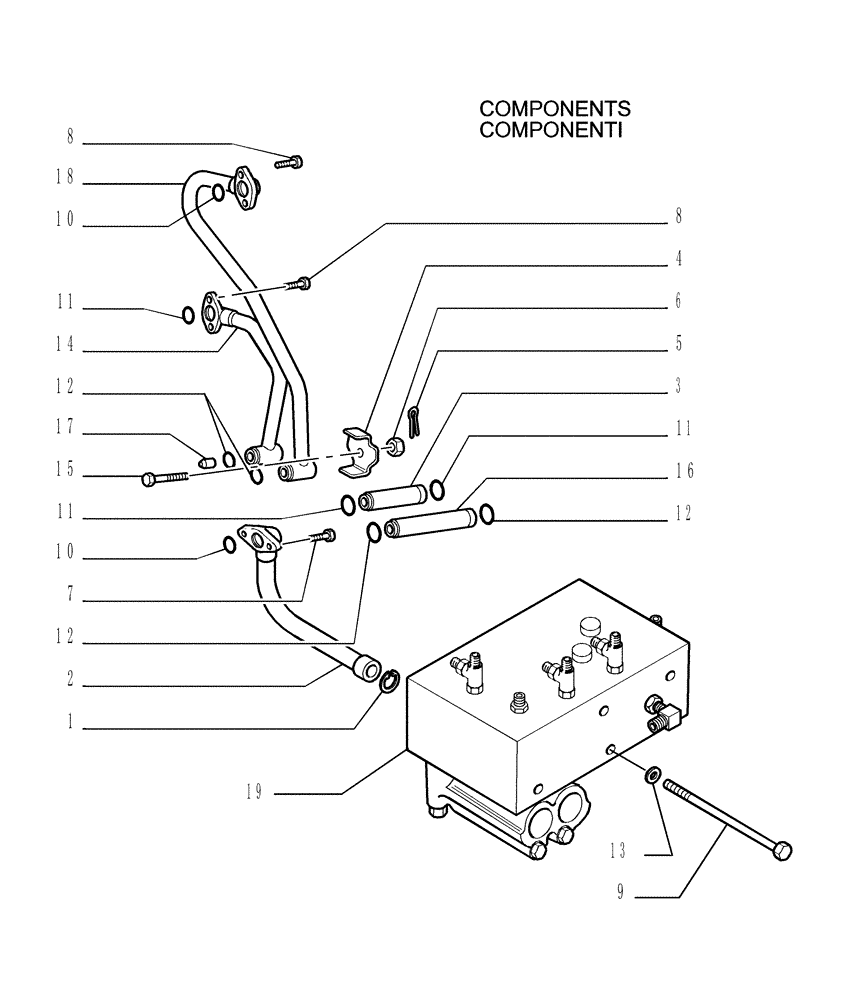

Запчасти Case 1850K (1.211[06]) - TRANSMISSION - PIPING Hydrostatic Transmission

1

586832

CIRCLIP

1шт.

2

586838

TUBE,8 mm ID, 10 mm OD, 190, 80 mm Length

1шт.

3

586839

TUBE,8 mm ID, 10 mm OD, 77 mm Length

1шт.

4

4965899

RETAINER

1шт.

5

10734401

COTTER PIN,M2 x 22

1шт.

6

10793111

NUT

M10 x 1.25 x 10

1шт.

7

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

8

10902534

SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd

4шт.

9

15972631

SCREW,M10 x 1.25 x 140mm, Cl 10.9

M10 x 1.25 x 140

5шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

(M9.19 ID x 2.62 Thk)

2шт.

11

14456981

O-RING,0.424" ID x 0.103" Width

3шт.

12

14457081

O-RING,12.37mm ID x 2.62mm

(M12.37 ID x 2.62 Thk)

4шт.

13

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

5шт.

14

79086549

TUBE,12 mm ID, 14 mm OD, 138.6, 93.9 mm Length

1шт.

15

16005531

SCREW,M10 x 1.25 x 50mm, Cl 10.9

M10 x 1.25 x 50

1шт.

16

79032376

TUBE,12 mm ID, 13.9 mm OD, 110 mm Length

1шт.

17

79038354

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

18

79038732

TUBE

1шт.

19

NS

NOT SERVICED

- Assy, See Pg. 10-11-12

1шт.
