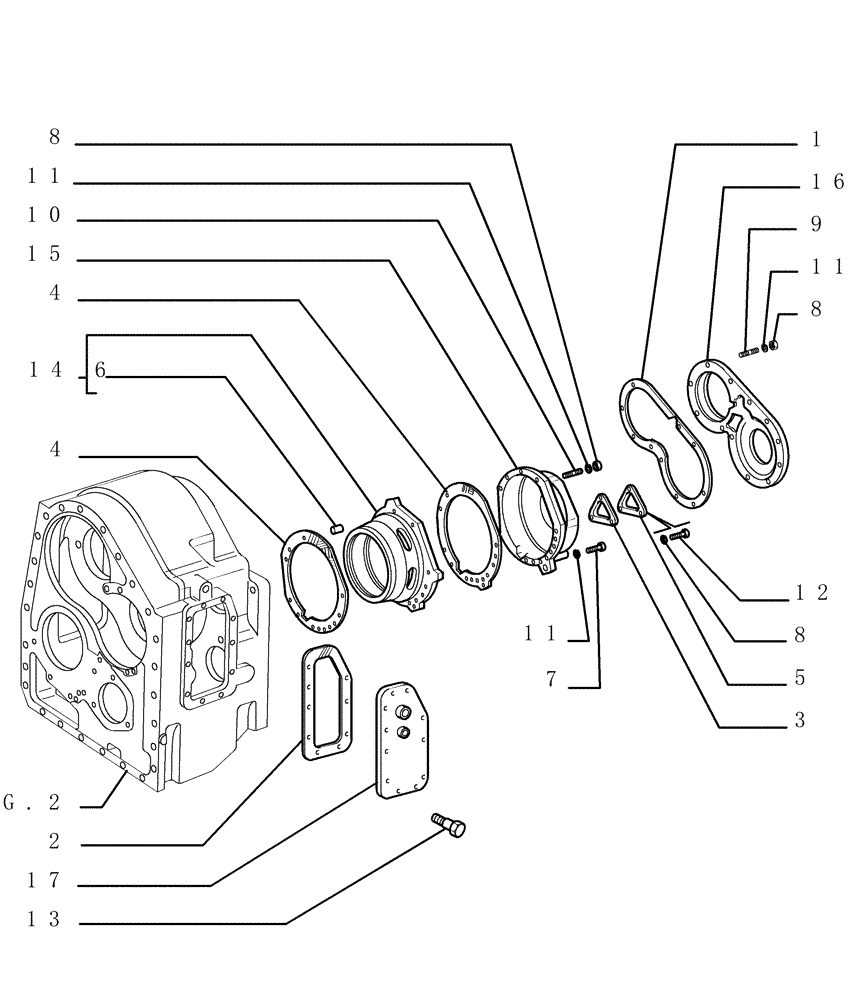

Запчасти Case 1850K (1.211[04]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

76028085

GASKET,0.8mm Thk

1шт.

2

76028088

GASKET,0.4mm Thk

1шт.

3

76028090

GASKET,0.8mm Thk

2шт.

4

76028083

GASKET,0.8mm Thk

2шт.

5

4972404

COVER

2шт.

6

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

7

11234734

BOLT,Hex, M10 x 1.25 x 45, 10.9

7шт.

8

12164721

NUT,M10 x 1.25, Cl 10

15шт.

9

13449734

STUD

M10 x 1.25 x 30

12шт.

10

13449934

STUD

M10 x 1.25 x 40

3шт.

11

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

22шт.

12

15970534

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

13

15970634

BOLT,Hex, M10 x 1.25 x 22mm, Cl 10.9, Full Thd

11шт.

14

79032241

SUPPORT

Assy

1шт.

15

79038342

COVER

1шт.

16

79064503

COVER

1шт.

17

76054761

COVER

1шт.
