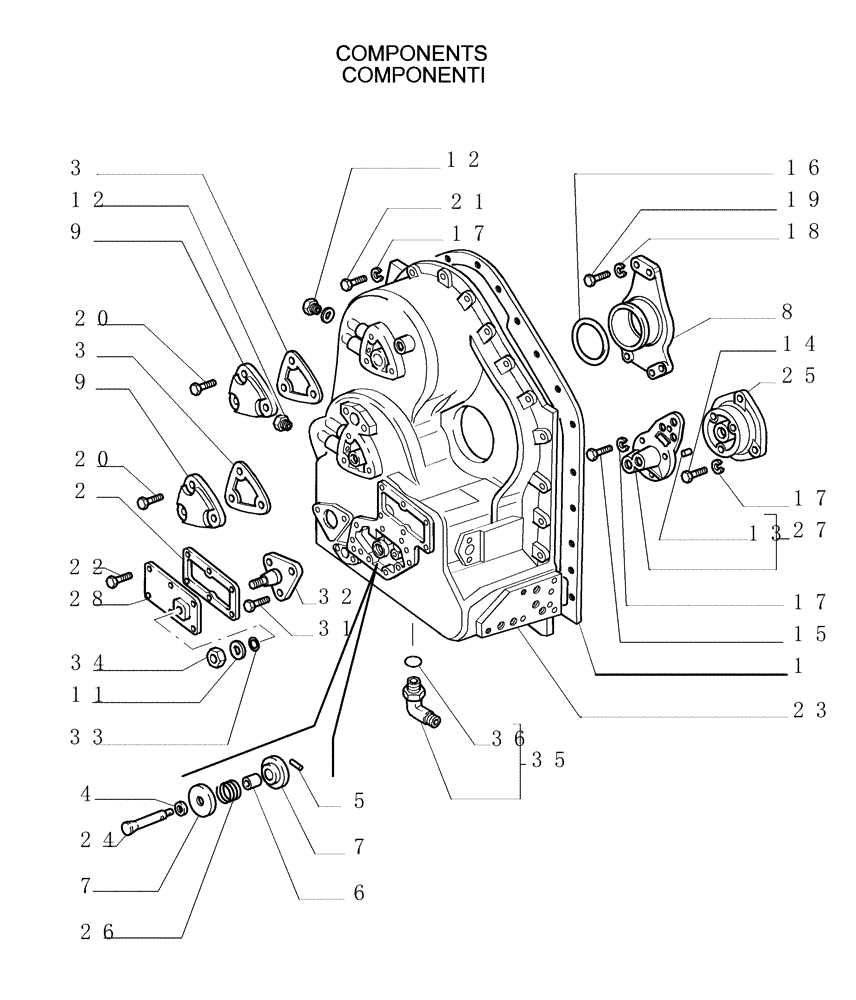

Запчасти Case 1850K (1.211[03]) - TRANSMISSION - CASE Hydrostatic Transmission

1

76028086

GASKET,0.8mm Thk

1шт.

2

76028091

GASKET,0.4mm Thk

1шт.

3

76028090

GASKET,0.8mm Thk

2шт.

4

591390

WASHER,6mm ID x 22mm OD x 3mm Thk

1шт.

5

591391

PIN

1шт.

6

591392

SPACER

1шт.

7

LEC591393

CUP

2шт.

8

593521

SUPPORT

1шт.

9

4972404

COVER

2шт.

11

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

10269450

PLUG

M12 x 1.5

2шт.

13

10486110

DOWEL,M4 x 8

2шт.

14

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

3шт.

15

15970731

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

16

14465981

O-RING,98.02mm ID x 4.137" OD x 2.62mm

1шт.

17

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

34шт.

18

14496731

WASHER,M12 x 24 x 2.5 Thk

3шт.

19

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

20

15970534

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

21

15970931

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9

26шт.

22

16043334

BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

6шт.

23

79032239

COVER

Front

1шт.

24

79032305

PIN,5mm OD x 36mm L

1шт.

25

79113079

COVER

1шт.

26

79032557

SPRING

1шт.

27

79113077

COVER

Assy

1шт.

28

76032151

COVER

1шт.

31

10979431

SCREW,Hex, M6 x 10mm, Cl 10.9, Full Thd

3шт.

32

76032150

PLATE

1шт.

33

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

34

11701721

NUT,M10, Cl 10

1шт.

35

79067025

ELBOW

20/90°- Assy

1шт.

36

14438185

O-RING,24mm ID x 3mm

1шт.
