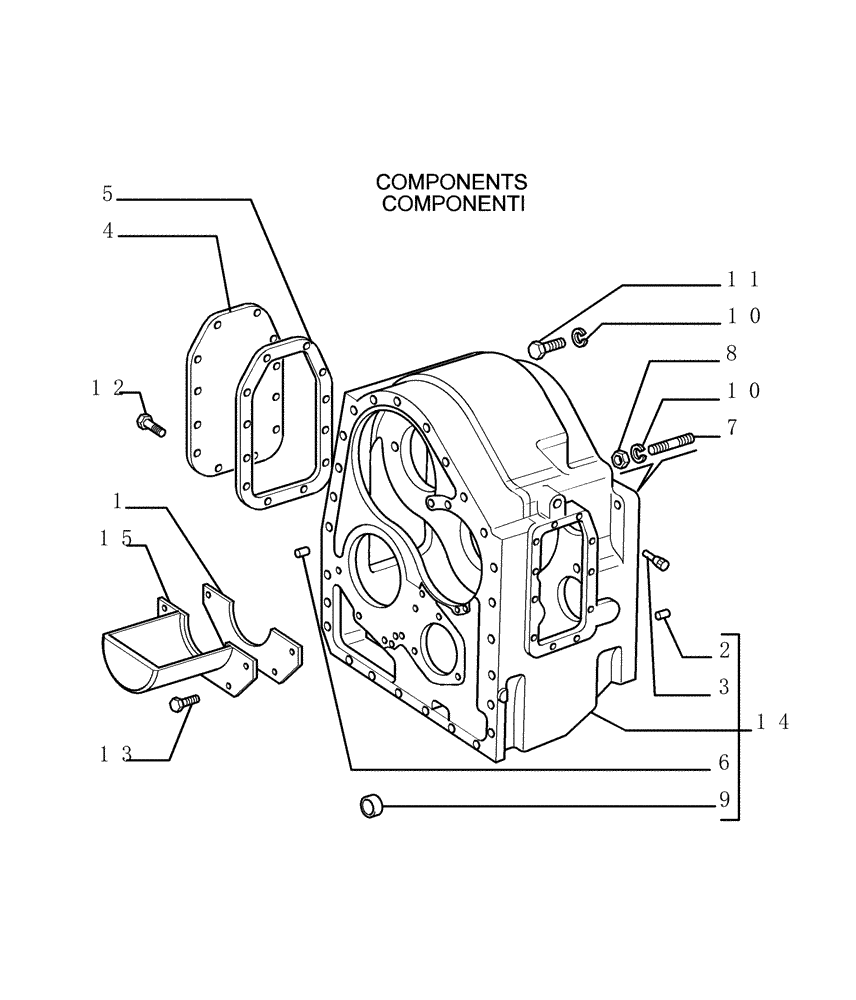

Запчасти Case 1850K (1.211[02]) - TRANSMISSION - CASE Hydrostatic Transmission

1

76028092

OIL PAN GASKET SET,0.4mm Thk

1шт.

2

587088

DOWEL

1шт.

3

4502935

SCREW

2шт.

4

4961971

COVER

Side RH

1шт.

5

76028089

GASKET,0.4mm Thk

1шт.

6

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

3шт.

7

11800534

STUD

M16 x 1.5 x 40

3шт.

8

12164121

NUT,M16 x 1.5, Cl 10

3шт.

9

504344694

PLUG,M25, Tapered

1шт.

10

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

7шт.

11

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

12

15970431

BOLT,Hex, M10 x 1.25 x 18mm, Cl 10.9, Full Thd

12шт.

13

16043134

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

4шт.

14

79032243

HOUSING

Assy

1шт.

15

79111321

GUARD

1шт.
