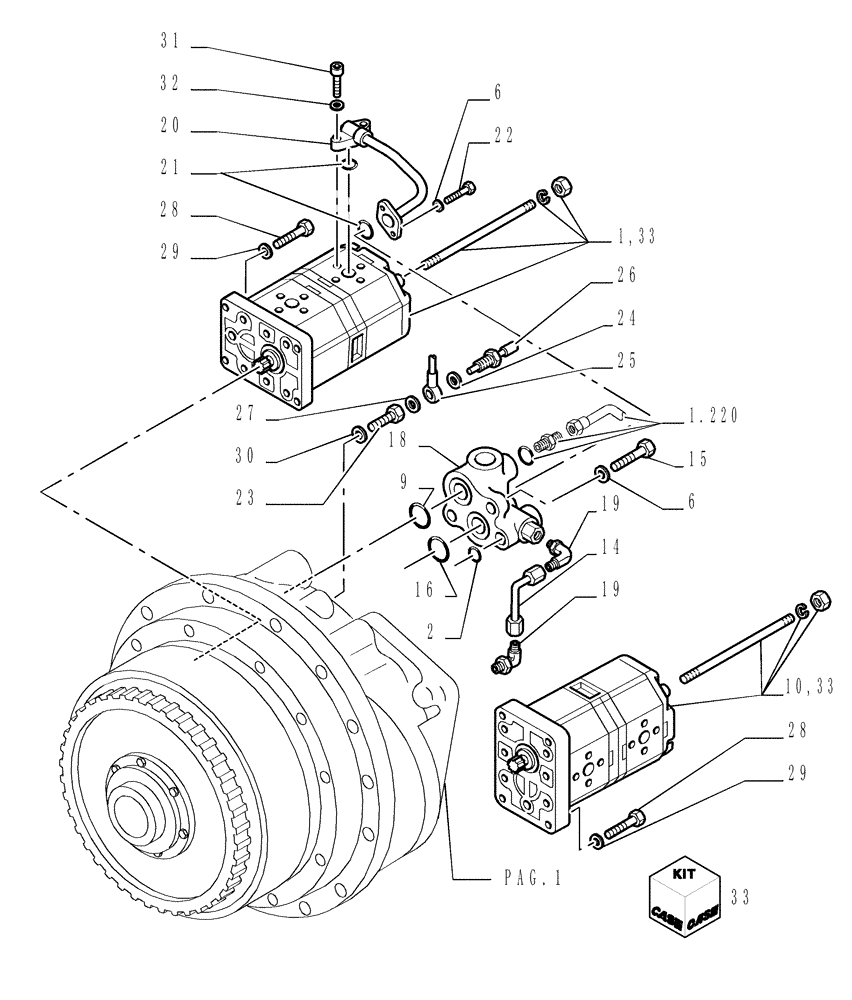

Запчасти Case 1850K (1.200[03]) - UNIT TORQUE CONVERTER Hydrostatic Transmission

1

76087674

HYDRAULIC PUMP,25.2 CC

Sauer

1шт.

1

76087674R

REMAN-HYD PUMP

1850K SERIES 3 CRAWLER TIER 3 (11/06-)

1шт.

1

76087674C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

6

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

9

14463281

O-RING,0.984" ID x 0.139" Width

1шт.

10

76087675

HYDRAULIC PUMP,19.2 CC

Steering Clutch - Brake

1шт.

14

76046162

HYD TUBE,4 mm ID, 6 mm OD, 56, 45 mm Length

1шт.

15

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

16

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

18

76071206

HYDRAULIC VALVE

Assy, See Pg. 6

1шт.

19

76045767

ELBOW

2шт.

20

76087669

HYD TUBE

1шт.

21

14457281

O-RING,0.612" ID x 0.103" Width

(M15.54 ID x 2.62 Thk)

2шт.

22

14307431

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

23

76054590

BANJO BOLT

1шт.

24

79086481

WASHER,18.7mm ID x 26mm OD x 1.5mm Thk

1шт.

25

592043

BANJO FITTING

1шт.

26

79062072

FITTING

1шт.

27

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

2шт.

28

14306631

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

29

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

30

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

31

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

2шт.

32

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

33

76087678

SEAL KIT

1шт.
