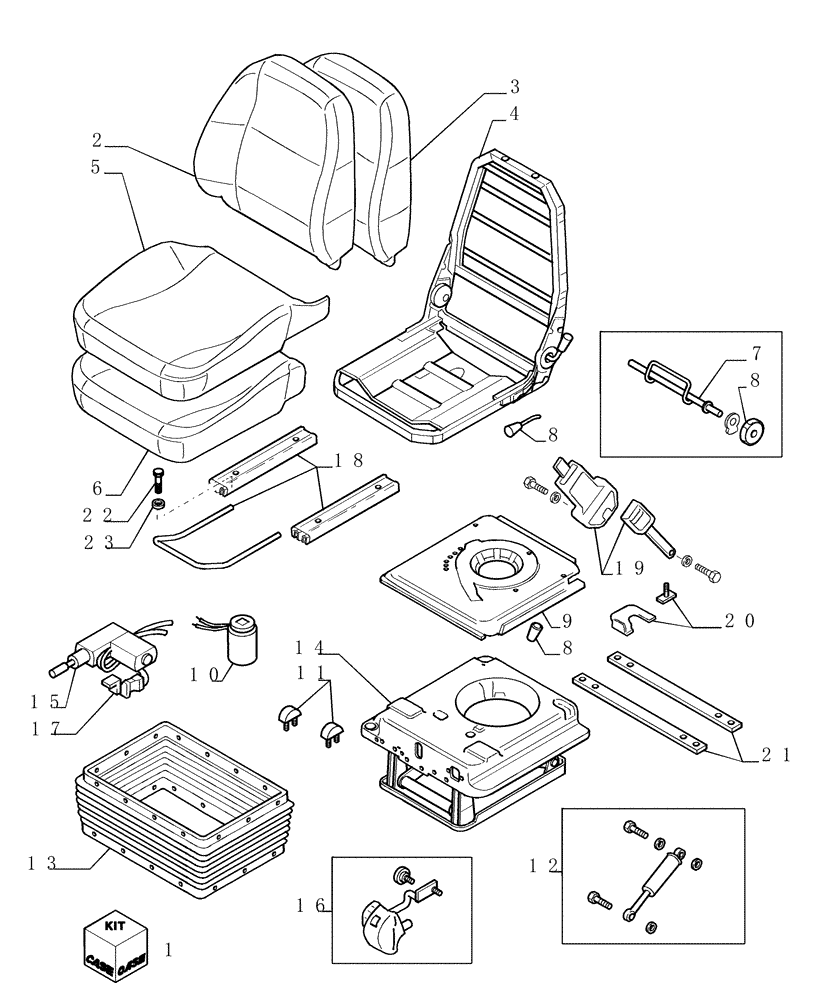

Запчасти Case 1850K (9.671[02]) - PNEUM. CUSHIONING SEAT - COMPONENTS - OPTIONAL CODE 784338011 (19) - OPTIONS

76092259

DRIVER SEAT

Incl. 1 - 21

1шт.

1

76095000

KIT

Upper Assy, Incl. 2-6

1шт.

2

76095001

SEAT CUSHION

1шт.

3

76095002

SEAT BACK

1шт.

4

76095003

FRAME

1шт.

5

76095004

DRIVER'S SEAT COVER

1шт.

6

76095005

SEAT CUSHION

1шт.

7

76095006

KIT

Lumbar Support

1шт.

8

76095007

KIT

Control Handle

1шт.

9

76095008

KIT

Swivel

1шт.

10

76095009

KIT

Air Spring

1шт.

11

76095010

KIT

Up Stop/Bump Stop

1шт.

12

76095011

KIT

Damper

1шт.

13

76095012

KIT

Suspension Cover

1шт.

14

76095013

KIT

Suspension Assy

1шт.

15

76095014

KIT

Compressor

1шт.

16

76095015

KIT

Ride Indicator

1шт.

17

76095016

KIT

Combination Valve

1шт.

18

76095017

KIT

Fore & Aft Adjustment

1шт.

19

76095018

SAFETY BELT

3 Degree

1шт.

20

76095019

KIT

Restricted Upstop

1шт.

21

76095020

KIT

Mounting

1шт.

22

14306331

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

23

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
