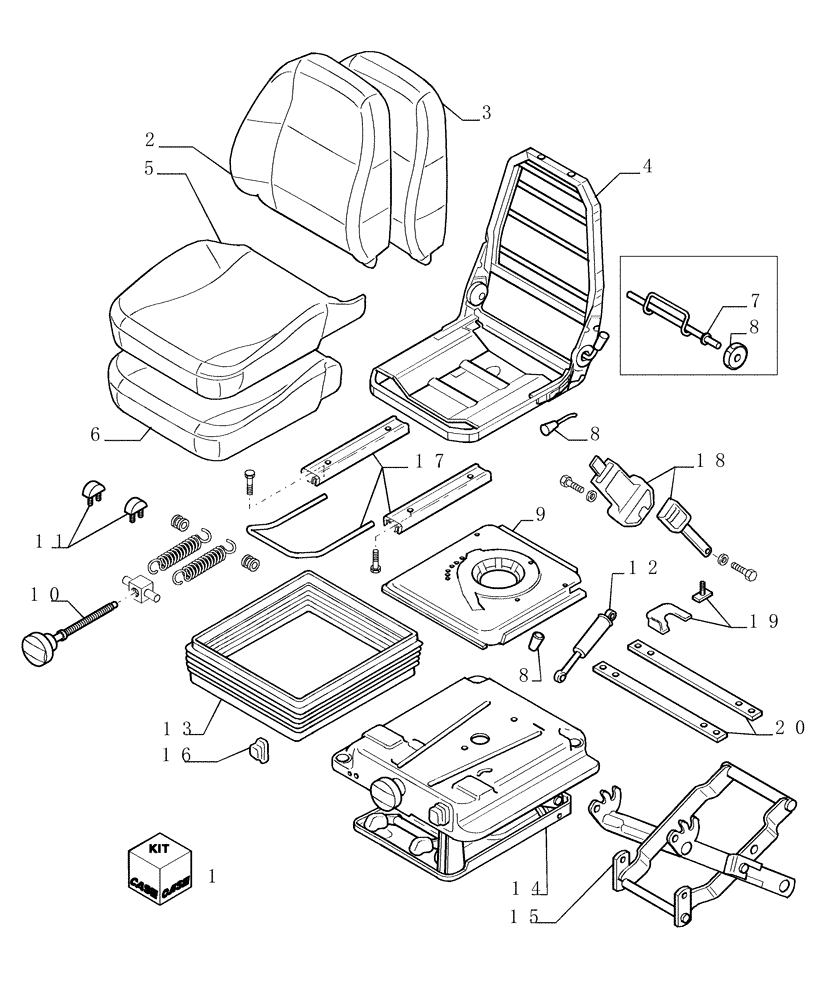

Запчасти Case 1850K (9.667[02]) - HEATED SEAT AT MECHANICAL SOSPENSION - COMPONENTS - OPTIONAL CODE 784336011 (19) - OPTIONS

1

76095021

KIT

Upper Assy

1шт.

2

76095022

SEAT CUSHION

1шт.

KIT 76095021

1шт.

3

76095002

SEAT BACK

1шт.

KIT 76095021

1шт.

4

76095003

FRAME

1шт.

KIT 76095021

1шт.

5

76095023

SEAT CUSHION

1шт.

KIT 76095021

1шт.

6

76095024

SEAT CUSHION

1шт.

KIT 76095021

1шт.

7

76095006

KIT

Lumbar Support

1шт.

8

76095007

KIT

Control Handle

1шт.

9

76095008

KIT

Swivel

1шт.

10

76095025

KIT

Height Adjuster

1шт.

11

76095010

KIT

Up Stop/Bump Stop

1шт.

12

76095026

KIT

Damper

1шт.

13

76095012

KIT

Suspension Cover

1шт.

14

76095027

KIT

Suspension Assy

1шт.

15

76095028

KIT

Bearing & Lever

1шт.

16

76095015

KIT

Ride Indicator

1шт.

17

76095017

KIT

Fore & Aft Adjustment

1шт.

18

76095018

SAFETY BELT

3 Degree

1шт.

19

76095019

KIT

Restricted Upstop

1шт.

20

76095020

KIT

Mounting

1шт.
