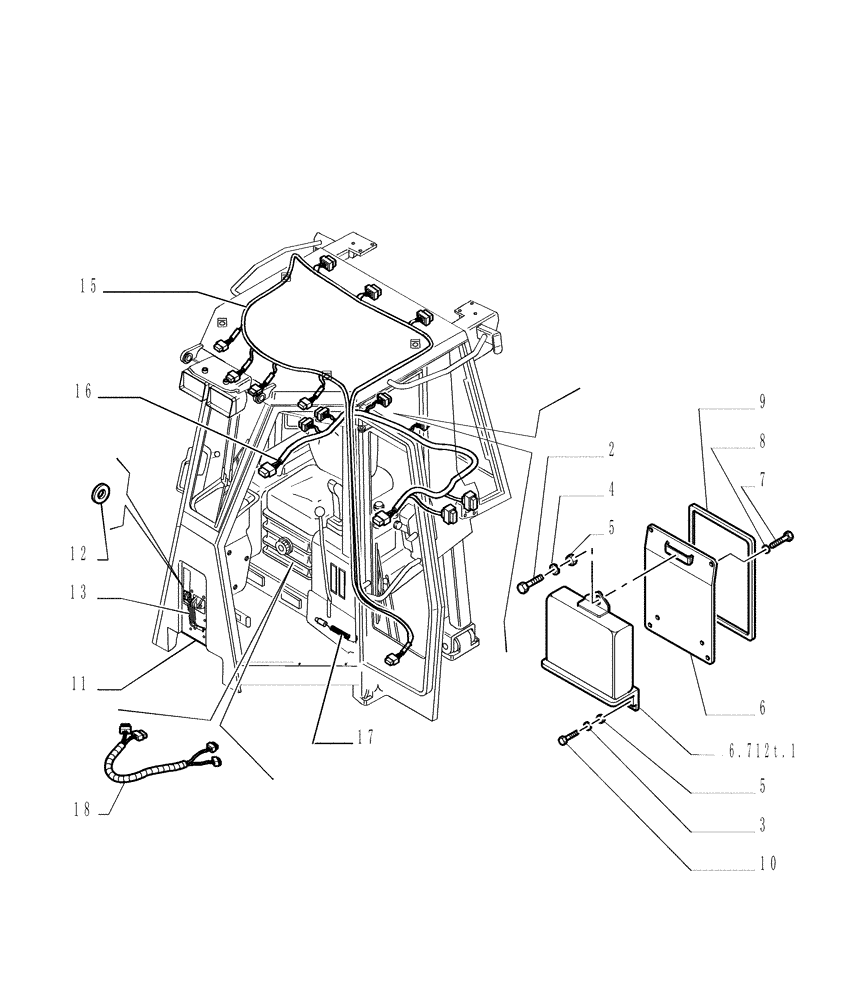

Запчасти Case 1850K (9.653[16]) - ROPS CAB - ELECTRIC COMPONENTS - OPTIONAL CODE 784110271 (19) - OPTIONS

2

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

4

10571574

LOCK WASHER

M6.1 x 1.6

3шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

6

76067481

SUPPORT

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

14496534

WASHER,M8

x 17

4шт.

9

76067456

SEAL

1шт.

10

14303921

HEX SOC SCREW,M6 x 70mm, Cl 8.8

2шт.

11

76067318

PLATE

1шт.

12

11069476

SNAP RING,M52, Ext

2шт.

13

71490904

SPRING

3шт.

15

87564642

WIRE HARNESS

LH

1шт.

16

87564641

WIRE HARNESS

RH

1шт.

17

76301390

WIRE HARNESS

Cab

2шт.

18

76301312

WIRE HARNESS

Seat

1шт.
