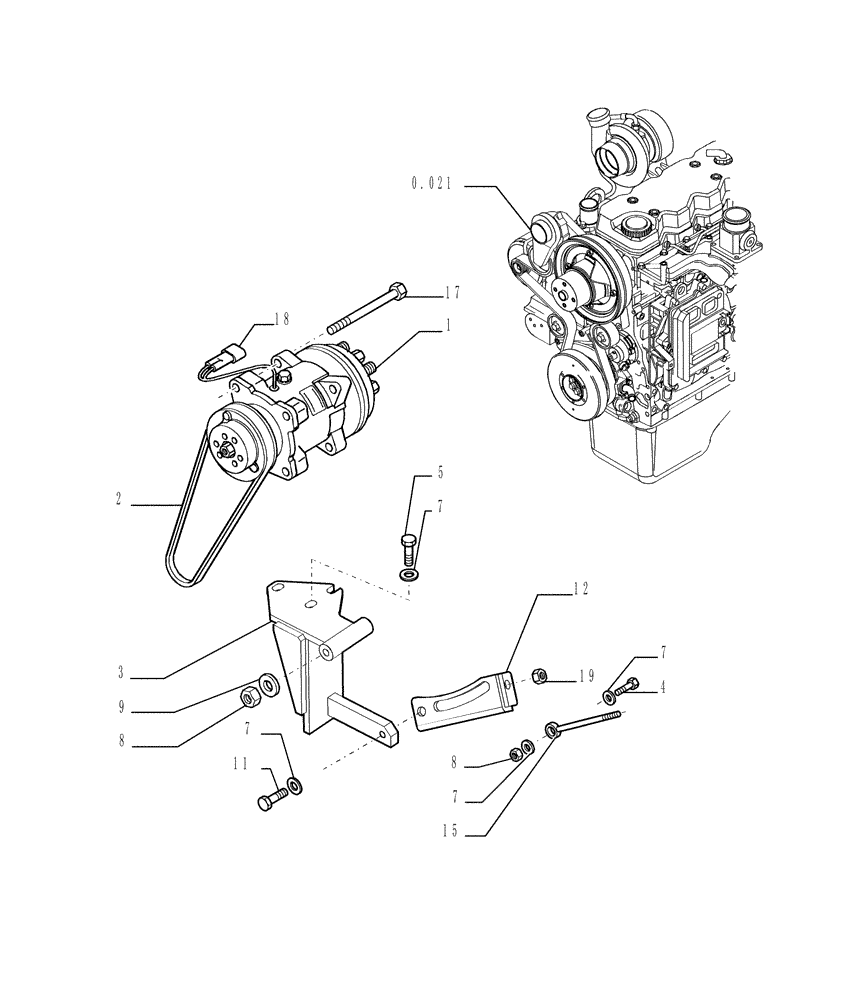

Запчасти Case 1850K (9.653[03]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 784110271 (19) - OPTIONS

1

76047005

AIRCOND. COMPRESSOR

1шт.

76047005R

REMAN-COMPRESSOR

1850K TIER 3 (11/06-)

1шт.

76047005C

CORE-COMPRESSOR

Return Number

1шт.

2

87361431

BELT,13.00 mm W x 1150.00 mm L, 4 Ribs

1шт.

3

87361422

SUPPORT

Compressor

1шт.

4

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

1шт.

5

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

7шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

9

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

12

76093677

BRACKET

1шт.

15

76089504

ADJUSTMENT ROD

1шт.

17

11108831

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

18

76066222

WIRE HARNESS

Compressor

1шт.

19

16104121

NUT,M8 x 1.25, Cl 10

1шт.
