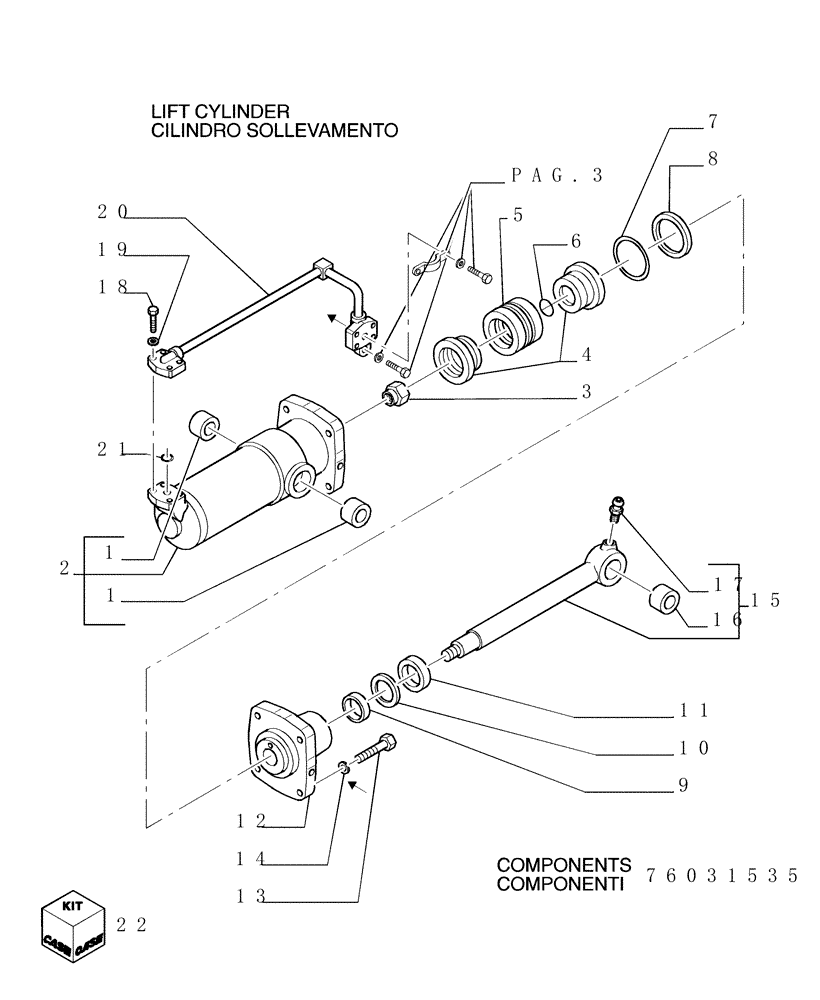

Запчасти Case 1850K (9.523[04]) - RIPPER (RP) - RECO - OPTIONAL CODE 784257011 (19) - OPTIONS

1-17

76031540

LIFT CYLINDER

Assy

1шт.

1-17

76031540R

REMAN-HYD CYLINDER

1850K SERIES 3 CRAWLER TIER 3 (11/06-)

1шт.

1-17

76031540C

CORE-HYD CYLINDER

Return Number

1шт.

1

76031532

BUSHING

2шт.

2

76090896

BARREL

Assy

1шт.

3

77904536

NUT

1шт.

4

76031534

PISTON

1шт.

5

76031536

SEAL

1шт.

6

14471280

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

(M50.16 ID x 5.33 Thk)

1шт.

7

76031537

O-RING

1шт.

8

76031538

SEAL

1шт.

9

76031539

SEAL

1шт.

10

76031541

SEAL

1шт.

11

76031542

MUDSCRAPER RING

1шт.

12

76092184

GLAND

1шт.

13

15224131

BOLT,Hex, M20 x 70mm, Cl 10.9, Full Thd

4шт.

14

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

15

76092185

ROD

Assy

1шт.

16

76031546

BUSHING

1шт.

17

13407211

LUBE NIPPLE,M10 x 1

1шт.

18

70921565

SCREW

4шт.

19

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

4шт.

20

76092187

HYD TUBE

1шт.

21

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

22

76031545

GASKET KIT

Incl. 5-11

1шт.
