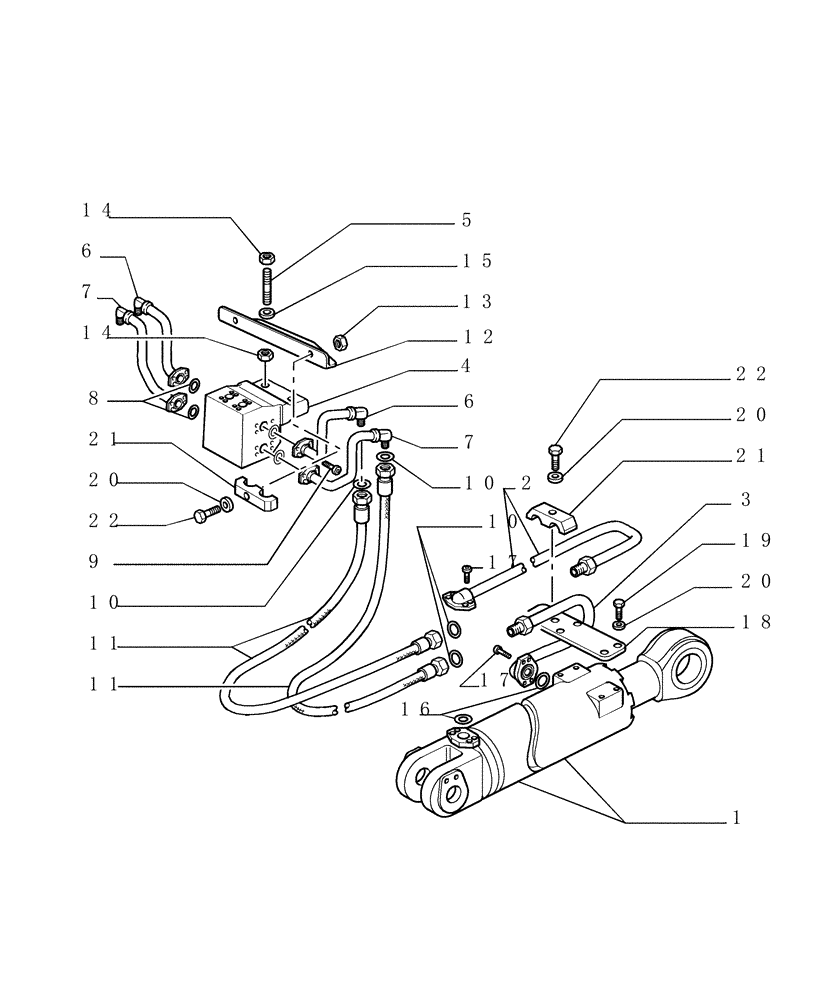

Запчасти Case 1850K (9.522[04]) - RIPPER (PD) - LIFT CYLINDERS PIPING - OPTIONAL CODE 784115041 (19) - OPTIONS

1

76090703

LIFT CYLINDER

RH Assy, See Pg. 5

1шт.

1

76090703R

REMAN-HYD CYLINDER

1850K SERIES 3 CRAWLER TIER 3 (11/06-), RH Assy.

1шт.

1

76090703C

CORE-HYD CYLINDER

Return Number

1шт.

1

76090705

LIFT CYLINDER

LH Assy, See Pg. 5

1шт.

1

76090705R

REMAN-HYD CYLINDER

1850K SERIES 3 CRAWLER TIER 3 (11/06-), LH Assy.

1шт.

1

76090705C

CORE-HYD CYLINDER

Return Number

1шт.

2

76090709

HYD TUBE

Rear LH

1шт.

2

76090706

HYD TUBE

Rear RH

1шт.

3

76090707

HYD TUBE

Front RH

1шт.

3

76090708

HYD TUBE

Front LH

1шт.

4

76090710

BODY

Diverter Valve

1шт.

5

79113880

STUD

2шт.

6

76090713

HYD TUBE

RH

1шт.

6

76090711

HYD TUBE

LH

1шт.

7

76090714

HYD TUBE

RH

1шт.

7

76090712

HYD TUBE

LH

1шт.

8

70924191

O-RING

M18.84 ID x 3.53 Thk

4шт.

9

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

10

70930357

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

11

79111216

HYDRAULIC HOSE

4шт.

12

76090715

BRACKET

1шт.

13

11701721

NUT,M10, Cl 10

2шт.

14

10717521

THIN NUT,M16 x 2mm, Cl 05

4шт.

15

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

16

70924110

O-RING

M24.99 ID x 3.53 Thk

4шт.

17

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

16шт.

18

76090716

PLATE

2шт.

19

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

20

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

14шт.

21

79076663

CLAMP

4шт.

22

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

4шт.
