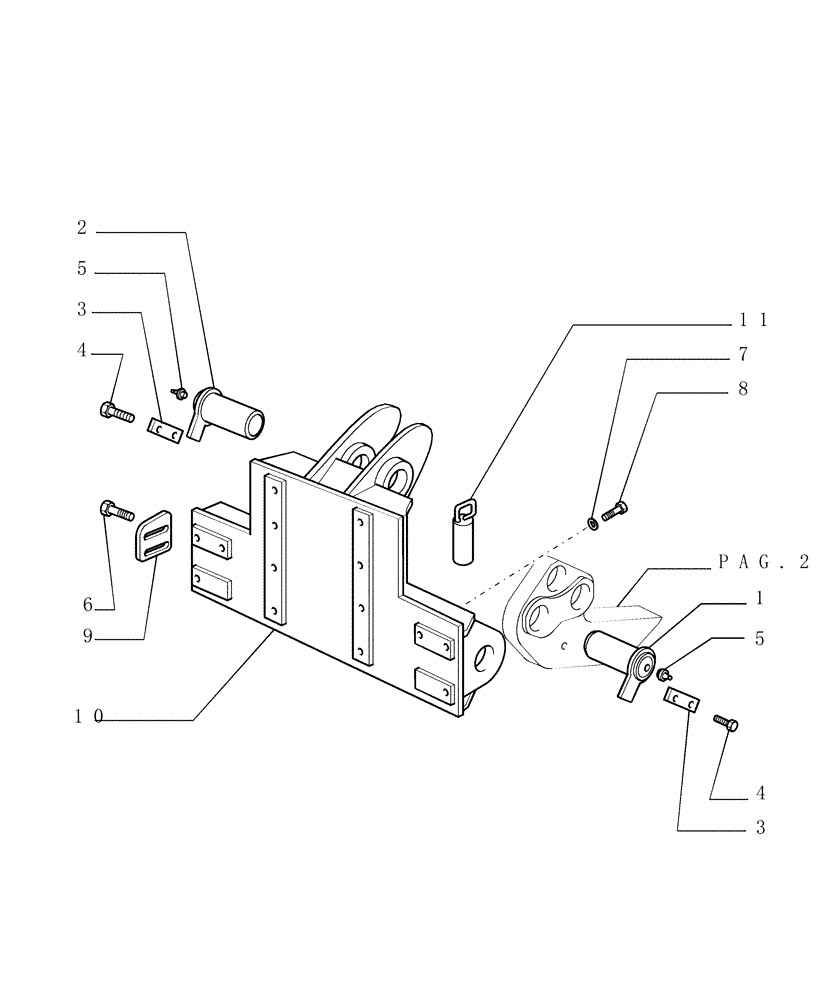

Запчасти Case 1850K (9.522[01]) - RIPPER (PD) - OPTIONAL CODE 784115041 (19) - OPTIONS

1

76090688

PIN

Assy

2шт.

2

76090691

PIN

1шт.

3

76090689

PLATE

3шт.

4

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

6шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

79102887

BOLT,Hex Flg, M8 x 1.25 x 27mm, Cl 10.9

2шт.

7

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

14шт.

8

15997331

BOLT,Hex, M24 x 2 x 70mm, Cl 10.9, Full Thd

14шт.

9

79102888

LOCKING PLATE

1шт.

10

76090687

SUPPORT

Assy

1шт.

11

76090690

PIN

Assy

1шт.
