(9.471[02]) - 6 - WAY BLADE - LT - OPTIONAL CODE 774180001 - VERSION (01)

Запчасти Case 1850K (9.471[02]) - 6 - WAY BLADE - LT - OPTIONAL CODE 774180001 - VERSION (01) (19) - OPTIONS

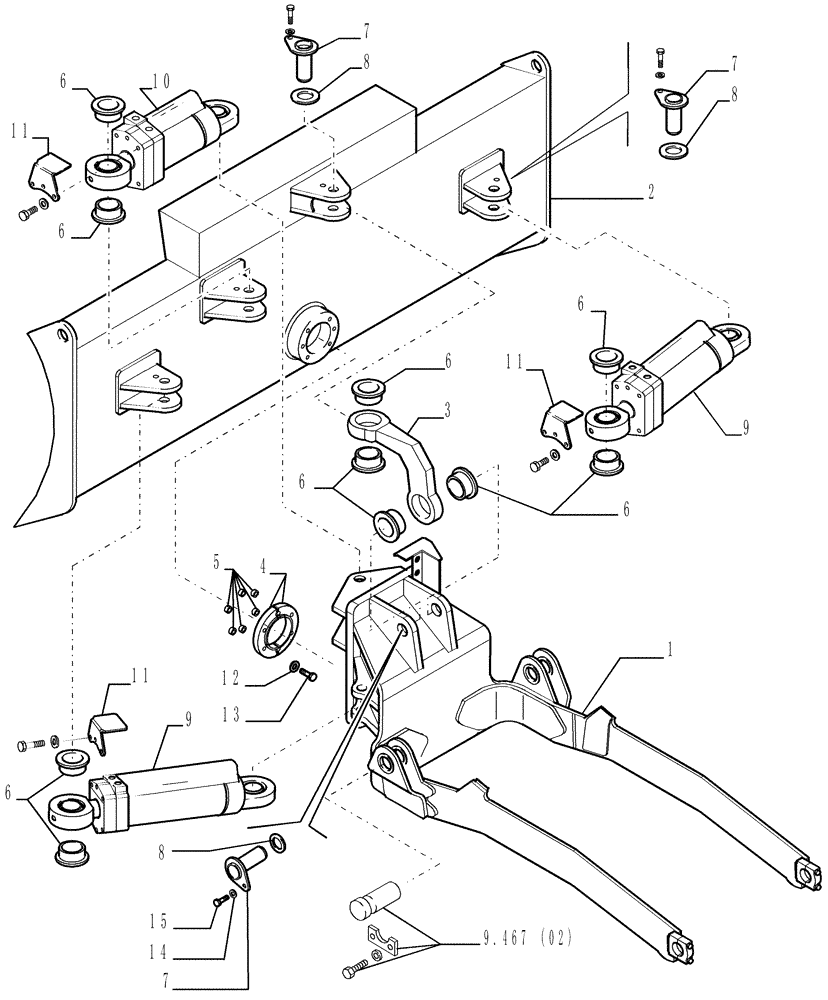

Схема запчастей Case 1850K - (9.471[02]) - 6 - WAY BLADE - LT - OPTIONAL CODE 774180001 - VERSION (01) (19) - OPTIONS
7
6
7
9
4
8
1
11
5
6
11
6
10
8
12
6
9.467 (02)
6
13
15
6
6
8
7
9
14
11
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87603176

FRAME

1шт.

2

87603177

BUCKET

Assy, See Pg. 5

1шт.

3

87603178

LINK

1шт.

4

87603179

RETAINER

1шт.

5

87603180

SHIM

6шт.

6

87603181

RUBBER WASHER

16шт.

7

87603182

PIN

8шт.

8

87603183

SPACER

4шт.

9

87603184

CYLINDER,Double Acting, 63.5mm Rod, 330.2mm Stroke

Angle, Assy, See Pg. 3

2шт.

9

87603184R

REMAN-HYD CYLINDER

1850K SERIES 3 CRAWLER TIER 3 (11/06-)

2шт.

9

87603184C

CORE-HYD CYLINDER

Return Number

2шт.

10

87603185

CYLINDER

Angle, Assy, See Pg. 4

1шт.

10

87603185R

REMAN-HYD CYLINDER

1850K SERIES 3 CRAWLER TIER 3, Angle, Assy, VERSION (01) (11/06-)

1шт.

10

87603185C

CORE-HYD CYLINDER

Return Number

1шт.

11

87603186

GUARD

3шт.

12

87603189

WASHER

6шт.

13

87603190

BOLT,Hex, 7/8" x 3.50", Cl 8

6шт.

14

87603191

LOCK WASHER

8шт.

15

87603192

BOLT,Hex, 5/8" x 1.50", Cl 5

8шт.
