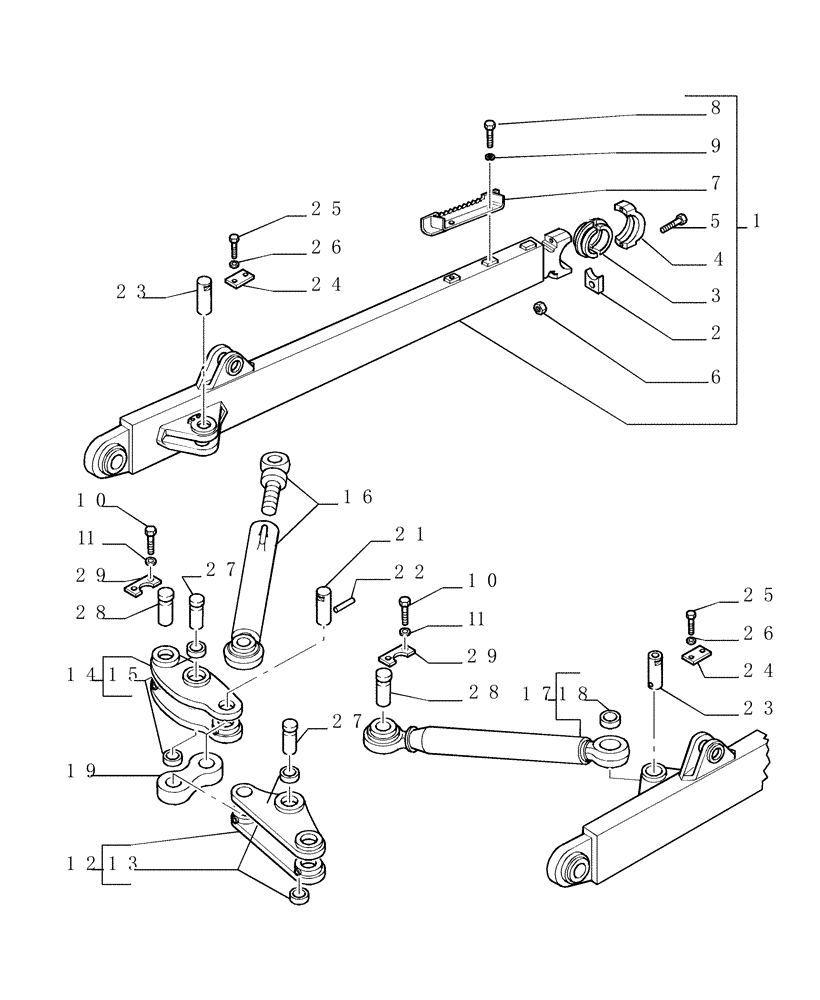

Запчасти Case 1850K (9.467[01A]) - PUSHBEAMS AND STRUTS (HS) - OPTIONAL CODE 76090875 (19) - OPTIONS

1

76090651

LIFT ARM

LH Assy

1шт.

1

76090650

LIFT ARM

RH Assy

1шт.

2

8280915

LOCKING PLATE

2шт.

3

8280908

HALF-BUSHING

1шт.

4

8296138

SUPPORT

LH

1шт.

5

16047131

SCREW,M24 x 180mm, Cl 10.9

M24 x 2 x 180

2шт.

6

12163721

NUT,M24, Cl 10

2шт.

7

79089245

FOOTREST

1шт.

8

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

9

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

10

11127531

BOLT,Hex, M16 x 35, 10.9

8шт.

11

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

8шт.

12

76090656

LEVER

LH Assy

1шт.

13

8270283

BUSHING,60.2mm ID x 72mm OD x 60mm L

2шт.

14

76090657

LEVER

RH Assy

1шт.

15

8270283

BUSHING,60.2mm ID x 72mm OD x 60mm L

2шт.

16

76090877

TIE-ROD

Assy, See Pg. 3A

1шт.

17

76090878

TIE-ROD

Assy

1шт.

18

8270259

BUSHING,60.2mm ID x 72mm OD x 78mm L

1шт.

19

76090660

CONNECTING LINK

1шт.

21

79114656

PIN

2шт.

22

13917770

ROLL PIN,M10 x 90, Coiled

2шт.

23

79114653

PIN,60mm OD x 176mm L

2шт.

24

79114658

PLATE

2шт.

25

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

4шт.

26

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

4шт.

27

79114654

PIN,60mm OD x 260mm L

2шт.

28

79114652

PIN,59.8mm OD x 223mm L

2шт.

29

79114657

LOCKING PLATE

4шт.
