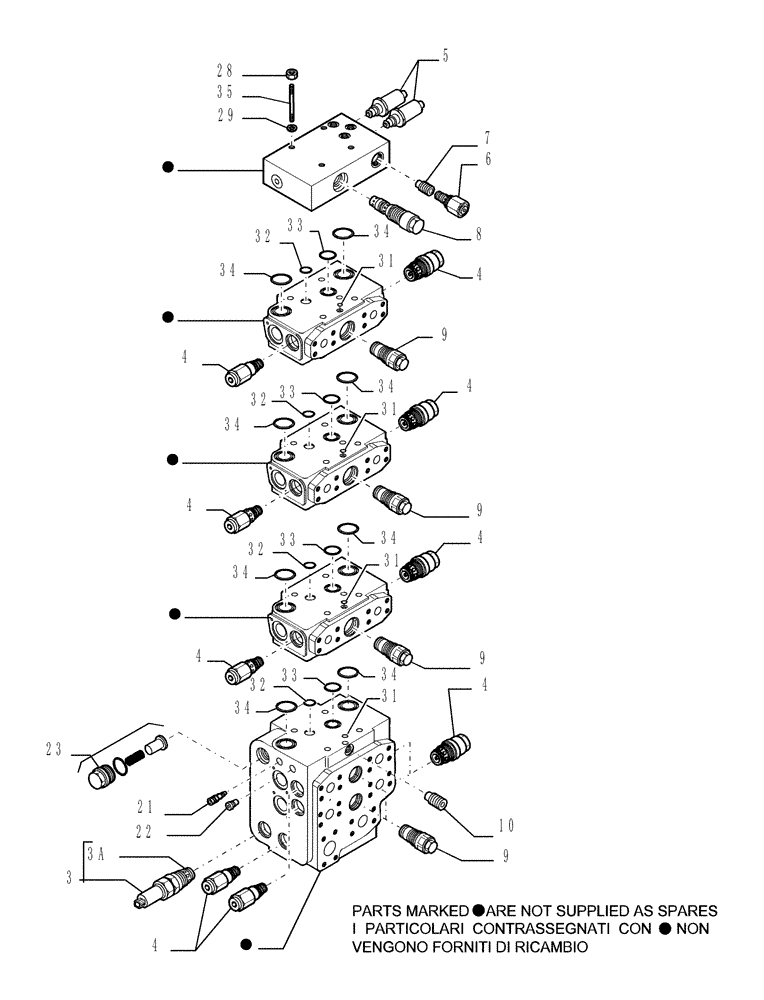

Запчасти Case 1850K (9.437[02]) - PAT EQUIPMENT CONTROL VALVE (5 SECTIONS) - OPTIONAL CODE 784866001 (19) - OPTIONS

3

87520464

SOLENOID VALVE

Assy

1шт.

3a

87520465

SEAL KIT

1шт.

4

87520058

VALVE PRESSURE RELIE

Assy, See Pg. 5, SGR.9.436

11шт.

5

87516636

HYDRAULIC VALVE

Assy, See Pg. 6, SGR.9.436

1шт.

6

76094864

HYDRAULIC VALVE

Assy

1шт.

7

87520446

SPRING

1шт.

8

87520061

HYDRAULIC VALVE

Discharge

1шт.

9

87520057

VALVE, PRESSURE CONT

Assy, See Pg. 4, SGR.9.436

5шт.

10

87520056

CHECK VALVE

1шт.

21

87520455

VALVE PRESSURE RELIE

1шт.

22

87520060

HYDRAULIC VALVE

Assy, See Pg. 5, SGR.9.436

1шт.

23

87520452

SCREW

1шт.

28

11701721

NUT,M10, Cl 10

4шт.

29

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

31

14452881

O-RING,7.65mm ID x 1.78" Width

(M7.65 ID x 1.78 Thk)

2шт.

31

70923952

O-RING

In Alternative

2шт.

32

87520474

O-RING,18mm ID x 2.5mm Width

M18 x 1.25

1шт.

33

70924110

O-RING

M24.99 ID x 3.53 Thk

1шт.

34

70924200

O-RING

M32.92 ID x 3.53 Thk

2шт.

35

87520055

SCREW

M10 x 280

4шт.
