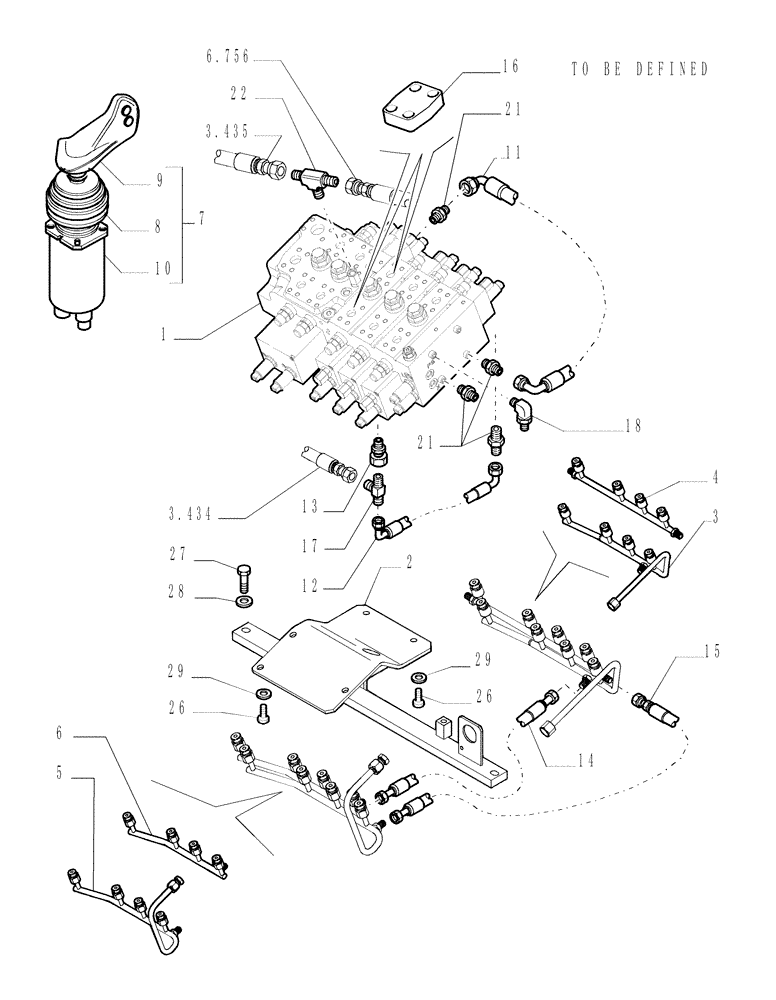

Запчасти Case 1850K (9.437[01]) - PAT EQUIPMENT CONTROL VALVE (5 SECTIONS) - OPTIONAL CODE 784866001 (19) - OPTIONS

1

87386552

HYDRAULIC VALVE

Assy, See Pg. 2, 3

1шт.

2

87353318

SUPPORT

1шт.

3

87370192

HYD TUBE

1шт.

4

87384432

HYD TUBE

1шт.

5

87370193

HYD TUBE

1шт.

6

87386292

HYD TUBE

1шт.

7

87334644

CONTROL

Joystick, Assy

1шт.

7

84167849R

REMAN ELECT CONTROL

1850K SERIES 3 CRAWLER TIER 3, Joystick, Assy (11/06-), Reman for New PN 87334644

1шт.

7

84167849C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87356983

BOOT

Blade Control

1шт.

9

87356984

HANDLE GRIP

1шт.

10

87386589

CONTROL UNIT

Blade, Base

1шт.

11

87382255

HYDRAULIC HOSE

1шт.

12

87382262

HYDRAULIC HOSE

1шт.

13

87384577

ADAPTER

1шт.

14

87386293

HYDRAULIC HOSE

1шт.

15

87386294

HYDRAULIC HOSE

1шт.

16

87386295

FLANGE

2шт.

17

87386297

HYDRAULIC VALVE

2шт.

18

79112044

ELBOW

1шт.

19

87363492

RING

1шт.

20

87377259

RING

1шт.

21

79066937

HYD CONNECTOR

4шт.

22

79066986

TEE

1шт.

23

79098133

HYD CONNECTOR

17шт.

24

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

25

10903631

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

26

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

4шт.

26

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

1шт.

27

11115831

BOLT,Hex, M14 x 40, 10.9, Full Thd

2шт.

28

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

2шт.

29

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

5шт.

30

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

2шт.

31

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

32

70924110

O-RING

M24.99 ID x 3.53 Thk

2шт.
