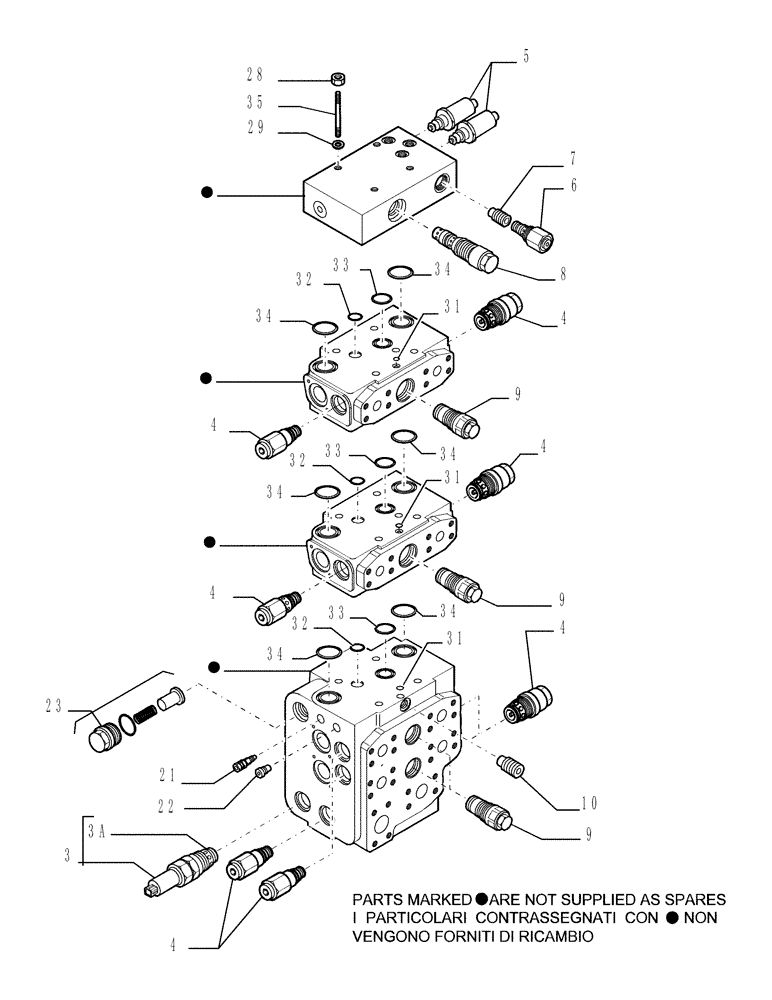

Запчасти Case 1850K (9.436[02]) - BD/AD EQUIPMENT CONTROL VALVE (4 SECTIONS) - OPTIONAL CODE 784865001 (19) - OPTIONS

3

87520464

SOLENOID VALVE

Assy

1шт.

3a

87520465

SEAL KIT

1шт.

4

87520058

VALVE PRESSURE RELIE

Assy, See Pg. 5

9шт.

5

87516636

HYDRAULIC VALVE

Assy, See Pg. 6, Flow Limiting

1шт.

6

76094864

HYDRAULIC VALVE

Assy, See Pg. 5

1шт.

7

87520446

SPRING

1шт.

8

87520061

HYDRAULIC VALVE

Discharge

1шт.

9

87520057

VALVE, PRESSURE CONT

Assy, See Pg. 4

4шт.

10

87520056

CHECK VALVE

1шт.

21

87520455

VALVE PRESSURE RELIE

1шт.

22

87520060

HYDRAULIC VALVE

Assy, See Pg. 5

1шт.

23

87520452

SCREW

1шт.

28

11701721

NUT,M10, Cl 10

4шт.

29

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

31

14452881

O-RING,7.65mm ID x 1.78" Width

(M7.65 ID x 1.78 Thk)

2шт.

31

70923952

O-RING

In Alternative

2шт.

32

87520474

O-RING,18mm ID x 2.5mm Width

M18 x 1.25

1шт.

33

70924110

O-RING

M24.99 ID x 3.53 Thk

1шт.

34

70924200

O-RING

M32.92 ID x 3.53 Thk

2шт.

35

87520472

SCREW,M10 x 210mm

M10 x 280

4шт.
