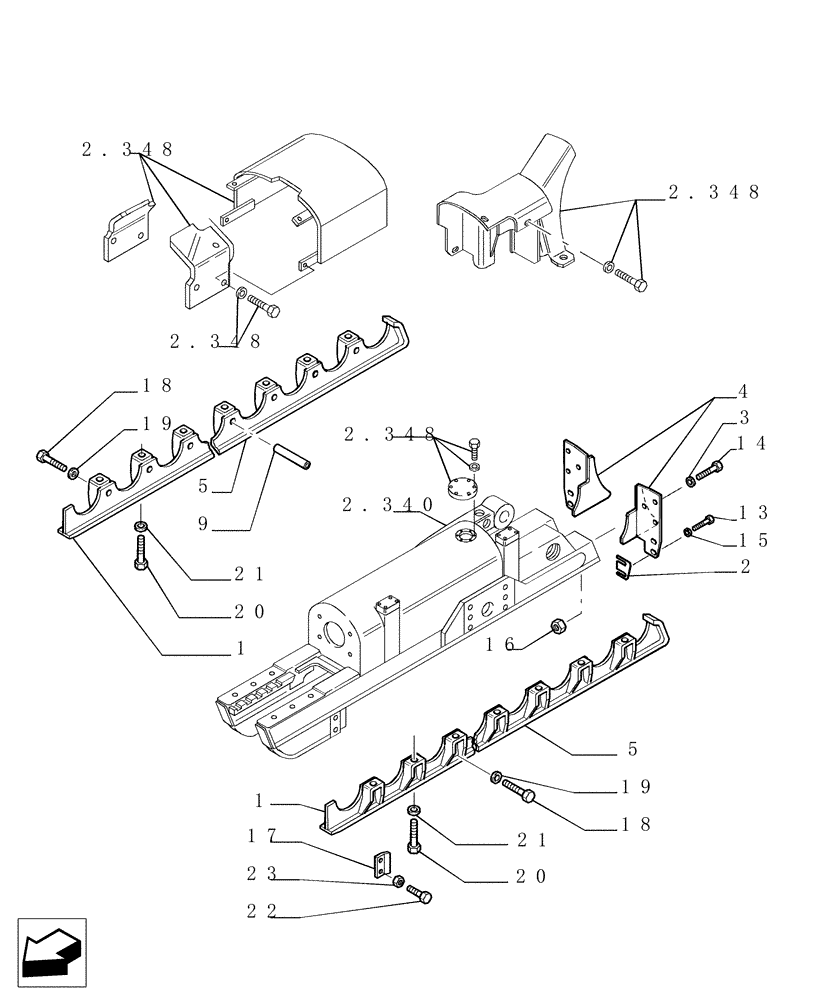

Запчасти Case 1850K (9.355[01]) - TRACK ROLLER GUARD - (FULL) XLT - OPTIONAL CODE 784173021 (19) - OPTIONS

1

76090759

GUARD

Front LH

2шт.

1

76090760

GUARD

Front RH

2шт.

2

76093928

SPACER

4шт.

3

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

12шт.

4

76093926

GUARD

Rear LH

2шт.

4

76095074

GUARD

Rear RH

2шт.

5

76090761

GUARD

Rear LH

2шт.

5

76090762

GUARD

Rear RH

2шт.

9

76004368

SPACER

14шт.

13

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

14

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

12шт.

15

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

16шт.

16

11702921

NUT,M12, Cl 10

8шт.

17

76006423

PLATE

4шт.

18

11408631

BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd

28шт.

19

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

28шт.

20

15840537

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

28шт.

21

79005240

WASHER,16.8mm ID x 36mm OD x 8mm Thk

M16 x 35.5 x 8

28шт.

22

11390537

BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd

8шт.

23

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

8шт.
