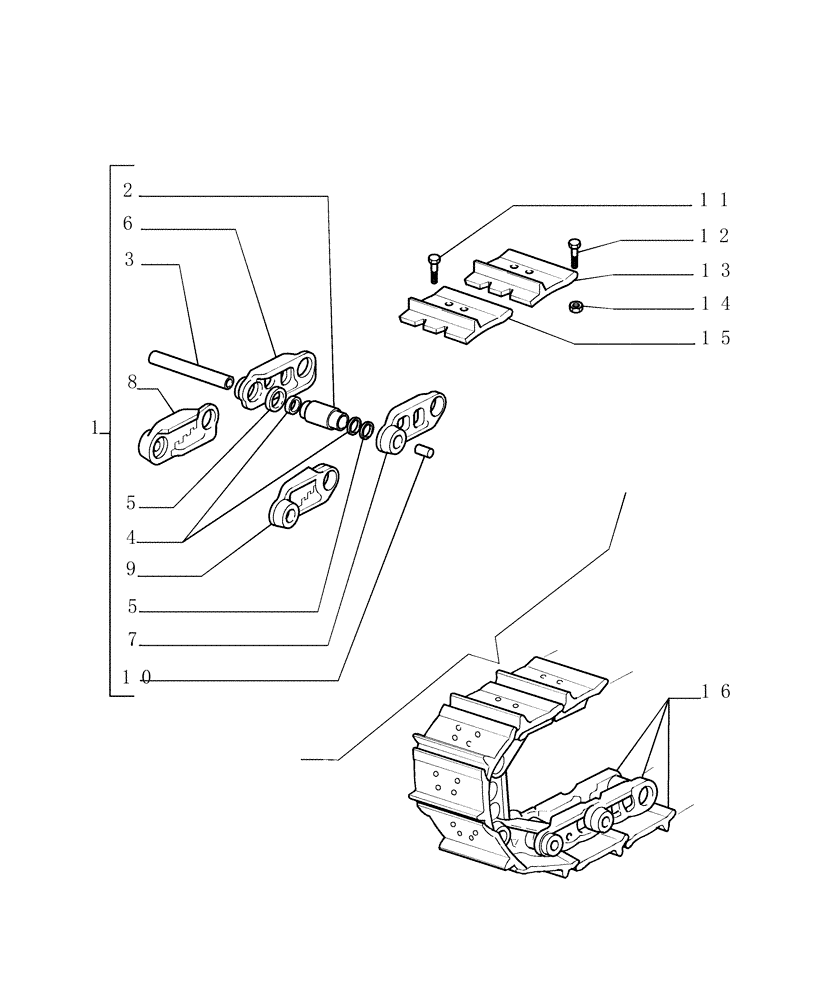

Запчасти Case 1850K (9.349[01B]) - SALT TRACK CHAIN - SHOES (L=560MM) XLT - OPTIONAL CODE 784254021 (19) - OPTIONS

1

76090768

TRACK ASSY

2шт.

2

76040934

BUSHING

45шт.

3

76040933

PIN

45шт.

4

76040938

SPACER

90шт.

5

76040937

OIL SEAL

90шт.

6

76090729

TRACK LINK

RH

44шт.

7

76090730

TRACK LINK

LH

44шт.

8

76090731

CONNECTING LINK

RH Master

1шт.

9

76090732

CONNECTING LINK

LH, Master

1шт.

10

76040943

PLUG

45шт.

11

76040927

BOLT,Hex, 3/4" - 16

4шт.

12

76040849

STEP BOLT,Hex, 3/4" - 16 x 2-3/8"

176шт.

13

76090733

TRACK SHOE

(1 Grouser) 560 mm

44шт.

14

76040850

SQUARE NUT

176шт.

15

76090734

TRACK SHOE

(1 Grouser) 560 mm Master

1шт.

16

76090769

TRACK ASSY

Track Chain

2шт.
