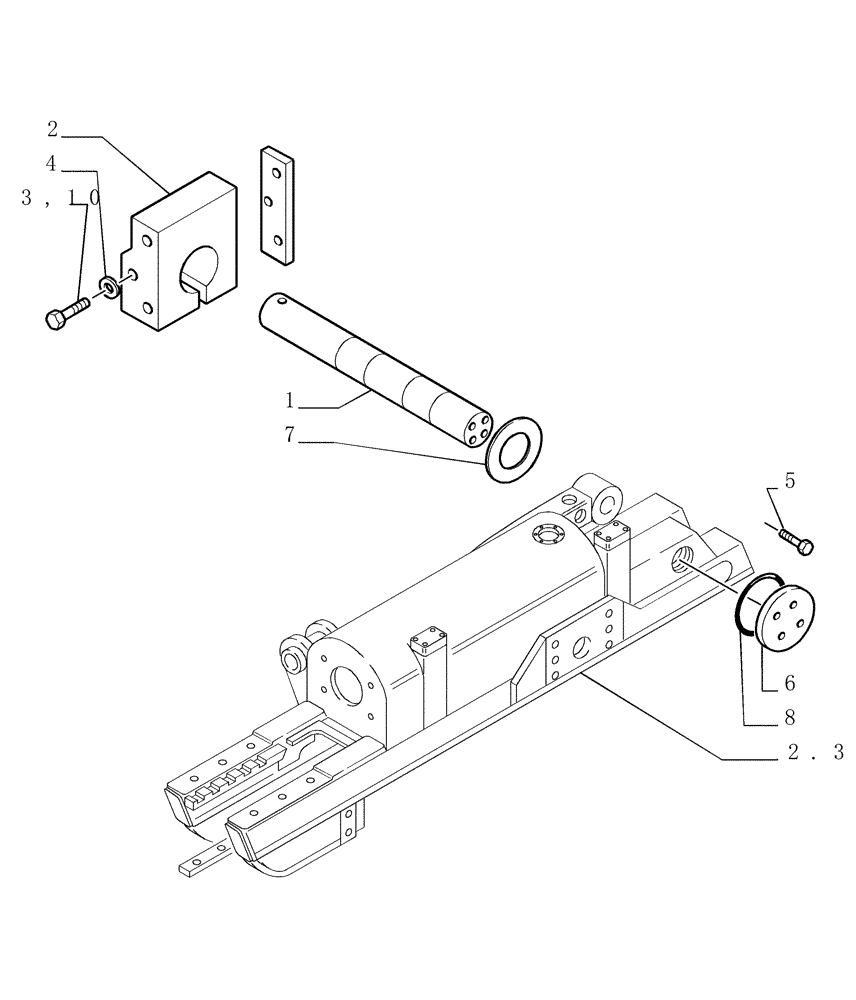

Запчасти Case 1850K (2.345[02A]) - SUSPENSION LGP - VERSION (03) (07) - HYDRAULIC SYSTEM/FRAME

1

76080873

SHAFT

2шт.

2

76072355

SUPPORT

LH

1шт.

2

76072356

SUPPORT

RH

1шт.

3

15999131

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

2шт.

4

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

6шт.

5

14279131

SCREW,M20 x 1.5 x 40mm

M20 x 1.5 x 40

8шт.

6

76080822

DISC

2шт.

7

76066184

SPACER,121mm ID x 180mm OD x 10mm L

2шт.

8

14474080

O-RING,139.1mm ID x 5.33mm Width

(M139.1 ID x 5.33 Thk)

2шт.

10

15871431

BOLT,Hex, M24 x 2 x 160mm, Cl 10.9

4шт.
