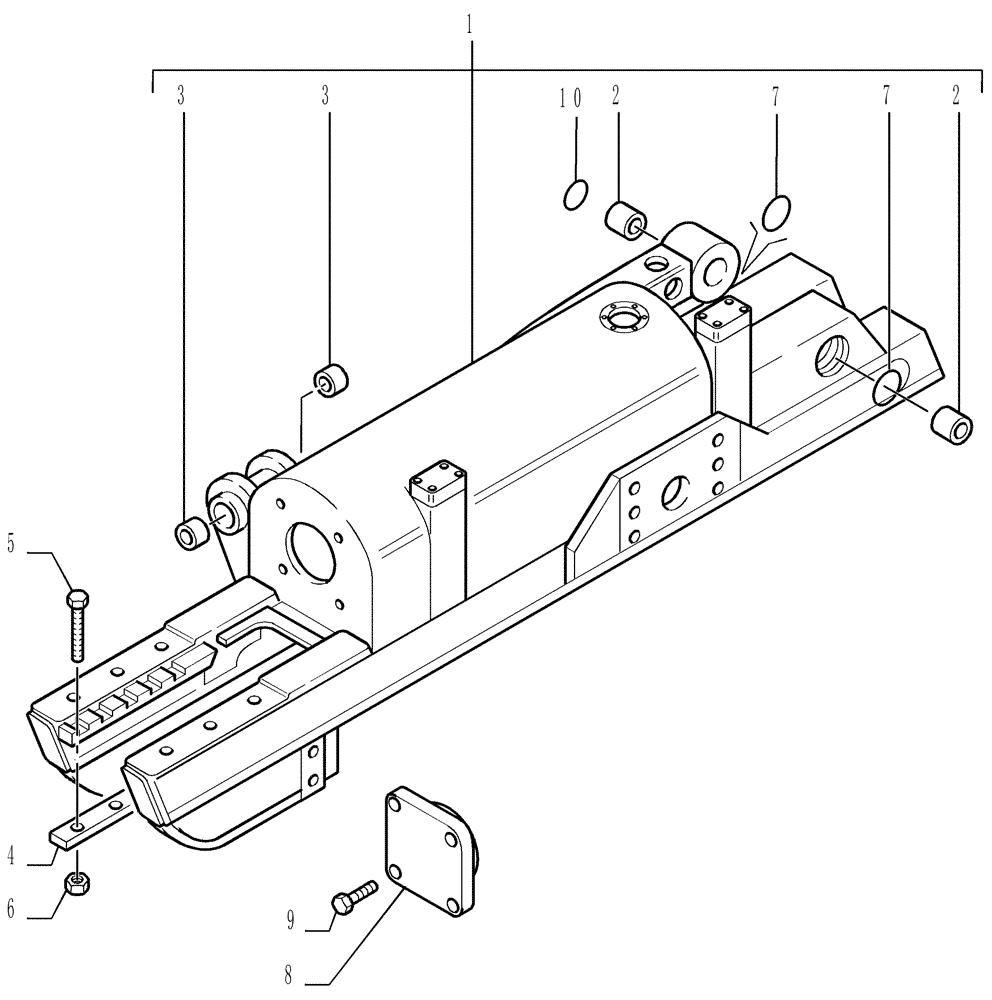

Запчасти Case 1850K (2.340[01B]) - TRACK FRAME - 8 ROLLERS LGP - VERSION (03) (07) - HYDRAULIC SYSTEM/FRAME

1

76095227

BODY

RH Assy

1шт.

1

76095226

BODY

LH Assy

1шт.

2

76073152

BUSHING,120.46mm ID x 135.41mm OD x 90mm L

2шт.

3

8295620

BUSHING,60.2mm ID x 72mm OD x 45mm L

2шт.

4

79031909

SHIM

4шт.

5

79031906

SCREW

Track

12шт.

6

16105021

LOCK NUT,M12 x 1.25, Cl 10

12шт.

7

76080832

SEAL

2шт.

8

76080823

COVER

2шт.

9

14422031

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

10

76095212

SEAL

1шт.
