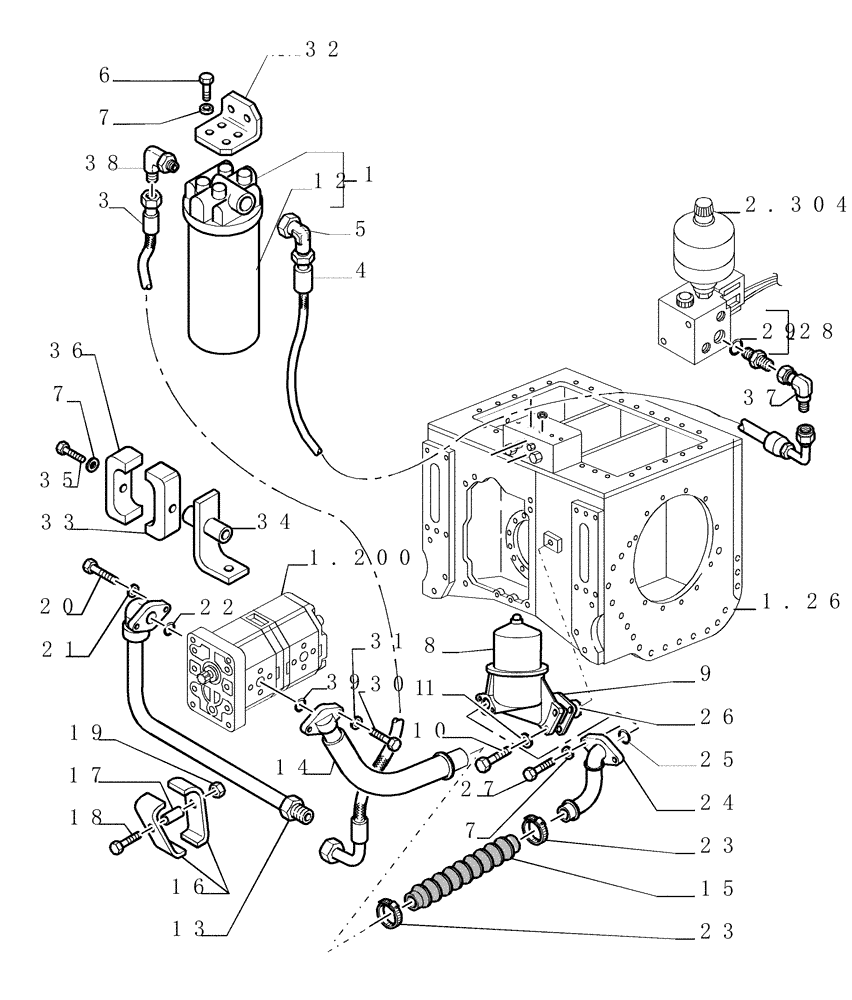

Запчасти Case 1850K (2.319[01]) - BRAKE/STEERING DIFFERENTIAL CONNECTING PIPES (07) - HYDRAULIC SYSTEM/FRAME

1

47411964

HYDRAULIC OIL FILTER

Assy

1шт.

3

76093644

FLEXIBLE HOSE

1шт.

4

76054882

FLEXIBLE HOSE

1шт.

5

79070959

ELBOW

1шт.

6

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

1931179

FILTER ASSY

See SGR.1.211 Pg. 13

1шт.

9

76028084

GASKET,0.4mm Thk

1шт.

10

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

3шт.

11

14496731

WASHER,M12 x 24 x 2.5 Thk

3шт.

12

47411966

ELEMENT

1шт.

13

76069945

HYD TUBE,12 mm ID, 16 mm OD, 360, 110 mm Length

1шт.

14

76046808

HYD TUBE

1шт.

15

76087682

HOSE

1шт.

16

76046655

CLAMP

2шт.

17

76046654

SPACER

2шт.

18

11108031

BOLT,Hex, M10 x 90mm, Cl 10.9

1шт.

19

11701721

NUT,M10, Cl 10

1шт.

20

10902831

SCREW,Hex, M6 x 30mm, Cl 10.9

2шт.

21

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

22

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

23

79083846

HOSE CLAMP,M40-60

2шт.

24

76046807

HYD TUBE

1шт.

25

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

26

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

27

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

2шт.

28

79066944

HYD CONNECTOR

1шт.

29

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

30

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

31

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

87516249

BRACKET

1шт.

33

76080520

BRACKET

1шт.

34

76080521

BRACKET

1шт.

35

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

36

79084821

CLAMP

1шт.

37

76039236

ELBOW

1шт.

38

79065436

HYD CONNECTOR

1шт.

39

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.
