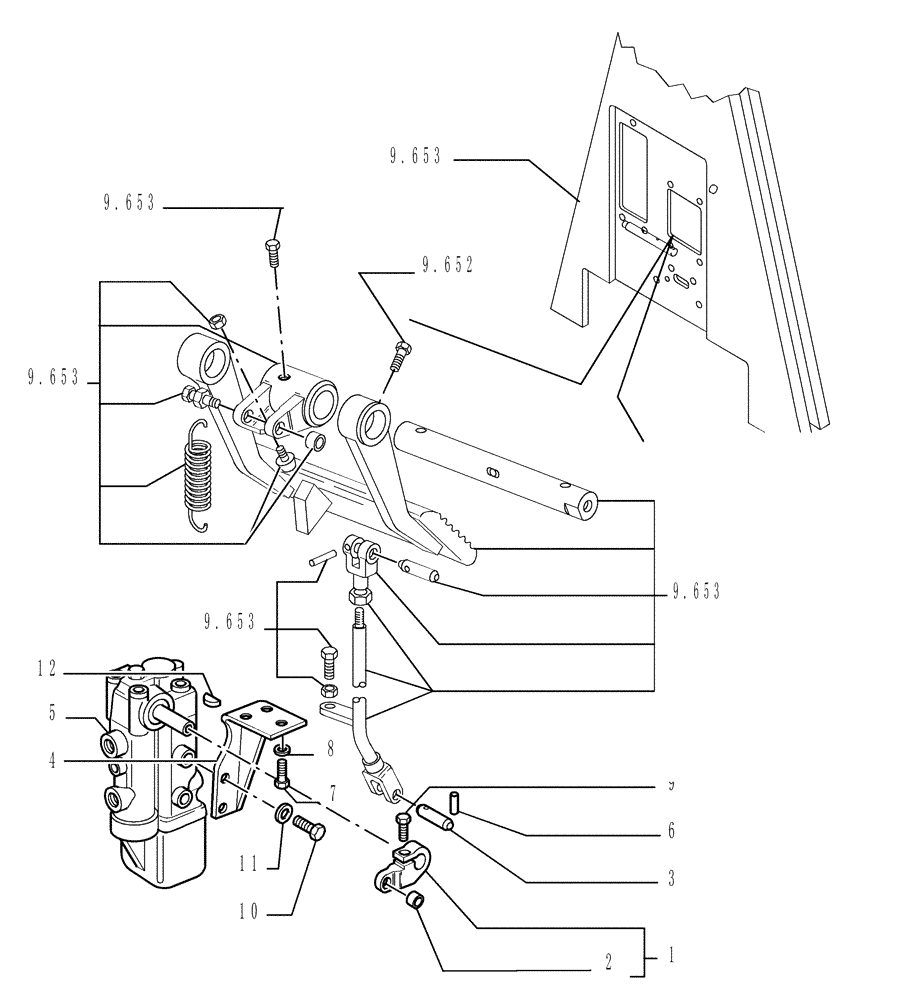

Запчасти Case 1850K (2.304[01]) - BRAKE CONTROLS - COMPONENTS (07) - HYDRAULIC SYSTEM/FRAME

1

79103851

LEVER

Assy

1шт.

2

79087112

BUSHING,Needle, 10mm ID x 14mm OD x 10mm W

1шт.

3

79103848

PIN,10mm OD x 38mm L

2шт.

4

79103852

BRACKET

1шт.

5

76068424

BRAKE VALVE

Assy, See Pg. 3-4

1шт.

6

14163271

ROLL PIN

M4 x 26

1шт.

7

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

3шт.

8

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

9

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

11

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

10205720

WOODRUFF KEY

M3 x 5

1шт.
