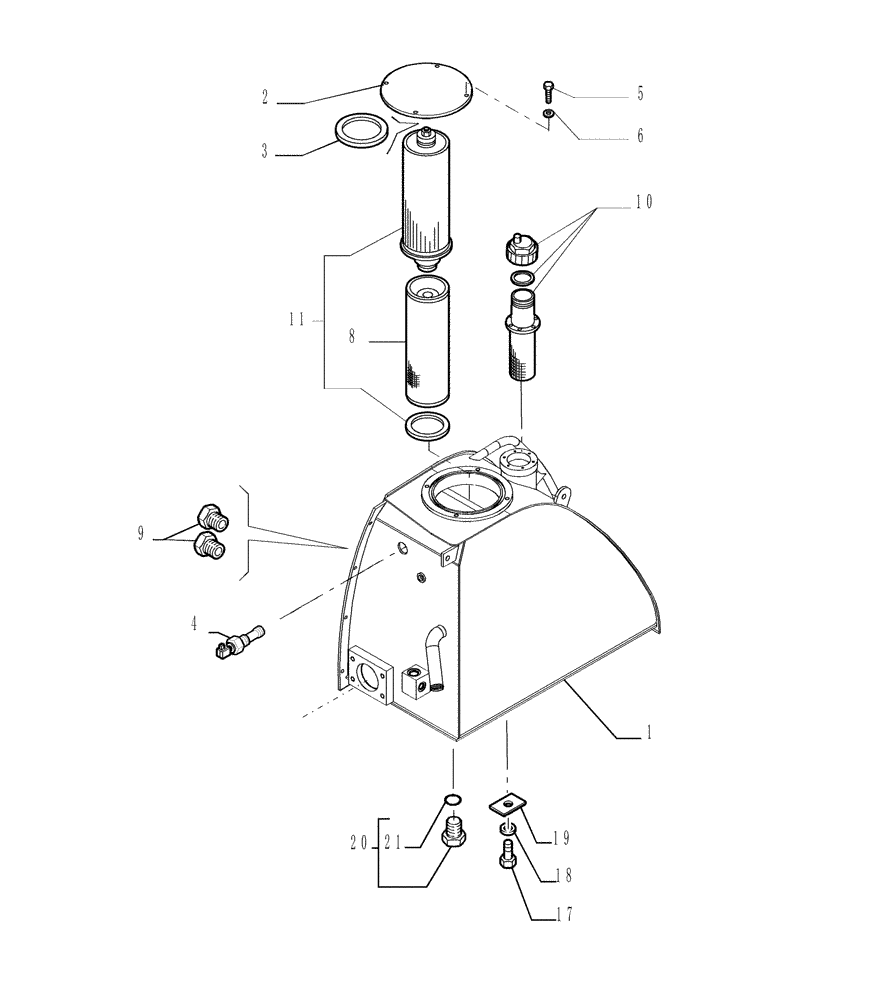

Запчасти Case 1850K (3.444[01]) - OIL TANK (04) - UNDERCARRIAGE

1

87354120

RESERVOIR, HYDRAULIC

1шт.

2

87358982

COVER

1шт.

3

14482780

O-RING,0.21" Thk x 6.975" ID, -365, Cl 5, 75 Duro

M171 ID x 3.53 Thk

1шт.

4

79094756

SENDER UNIT

(TAR. 2-2.2 BAR)

1шт.

5

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

8

87353685

ELEMENT

1шт.

9

79103405

LEVEL GAUGE

Oil

2шт.

10

76075291

FILTER STRAINER

Oil Assy; w/Cap

1шт.

11

87353677

HYDRAULIC OIL FILTER

Incl. 72105357 O-Ring

1шт.

72105357

O-RING

1шт.

17

11116031

BOLT,Hex, M14 x 45, 10.9, Full Thd

3шт.

18

79005238

WASHER,14.8mm ID x 32mm OD x 7mm Thk

M14 x 32

3шт.

19

76046616

SHIM

1шт.

20

10119140

PLUG

Assy, M42 x 2 x 16

1шт.

21

14438385

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

M39 ID x 3.0 Thk

1шт.
