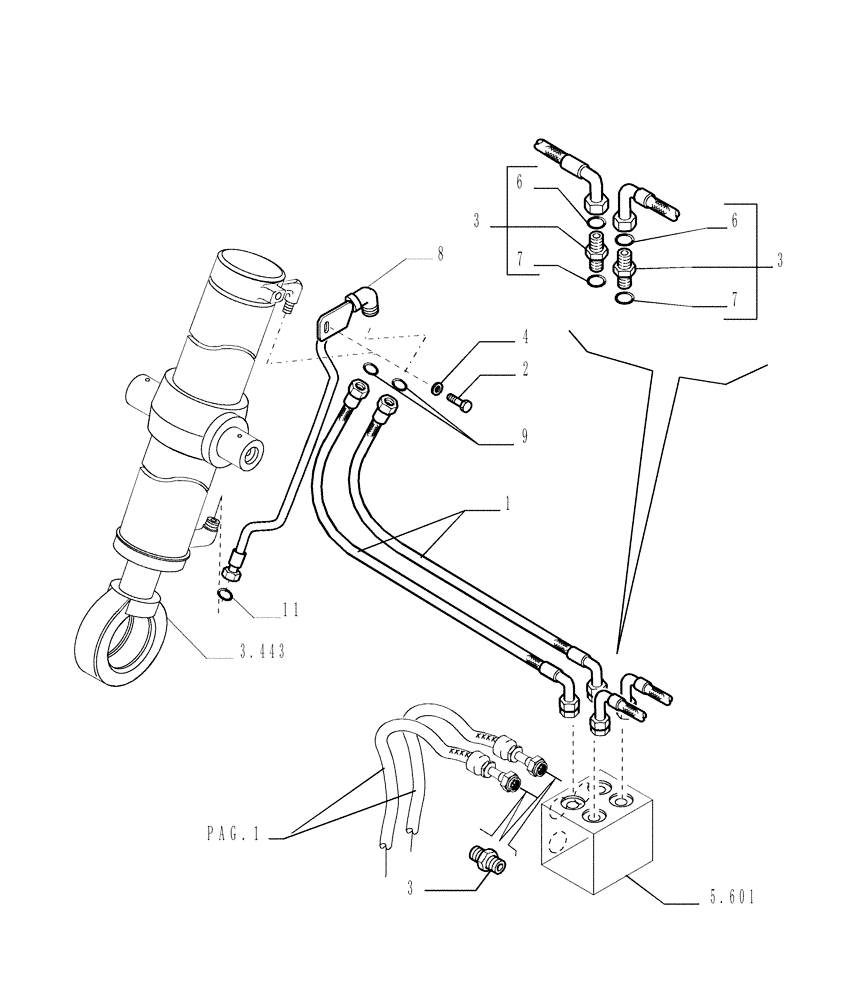

Запчасти Case 1850K (3.440[02]) - LIFT CYLINDERS PIPING (04) - UNDERCARRIAGE

1

76073168

HYDRAULIC HOSE,19.05mm ID x 1050mm L

1050 mm lg.

4шт.

2

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

3

78100100

HYD CONNECTOR

M22 x 1.5 - Assy

6шт.

4

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

6

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

87384801

HYD TUBE

LH

1шт.

8

87384806

HYD TUBE

RH

1шт.

9

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

4шт.

11

70924110

O-RING

M24.99 ID x 3.53 Thk

2шт.

16

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

4шт.
