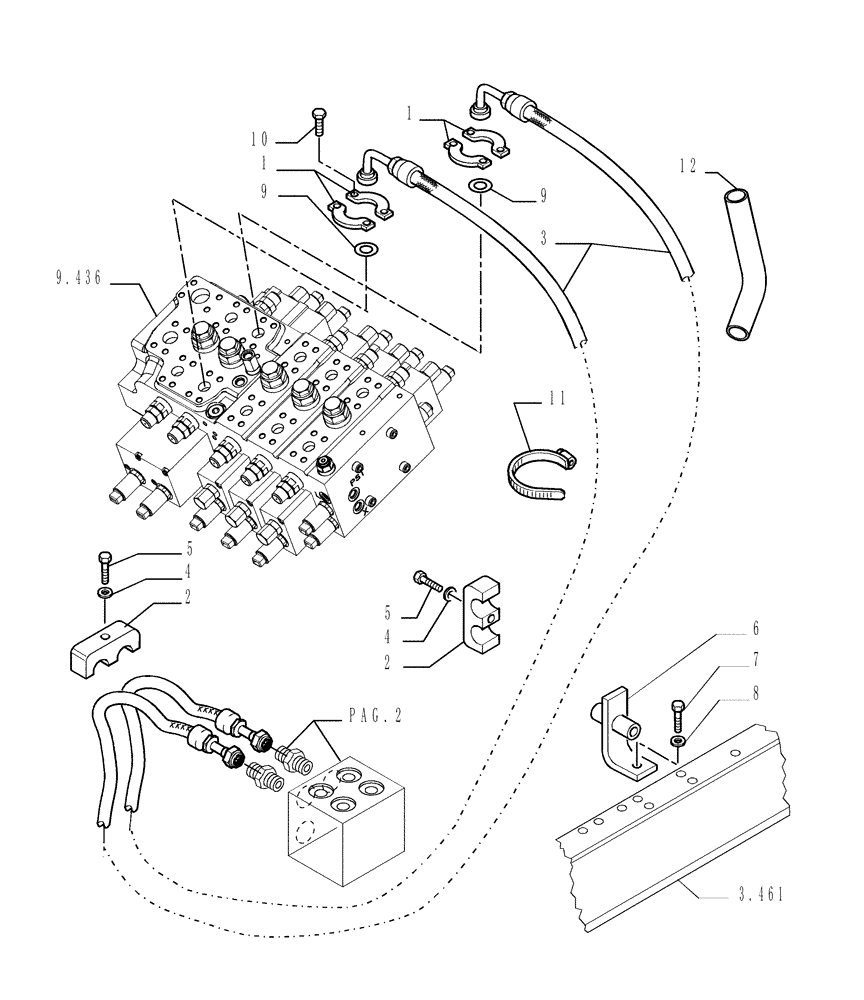

Запчасти Case 1850K (3.440[01]) - LIFT CYLINDERS PIPING (04) - UNDERCARRIAGE

1

71418893

CLAMP

3/4"

4шт.

2

79076680

CLAMP

3шт.

3

87359237

HYDRAULIC HOSE

2шт.

4

12638631

WASHER,10.6mm ID x 18mm OD x 2mm Thk

3шт.

5

16040831

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

76046915

BRACKET

2шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

8

14496731

WASHER,M12 x 24 x 2.5 Thk

2шт.

9

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

2шт.

10

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

11

79055959

CABLE TIE

CABLE STRAP

2шт.

12

76071322

HOSE PROTECTION

1шт.
