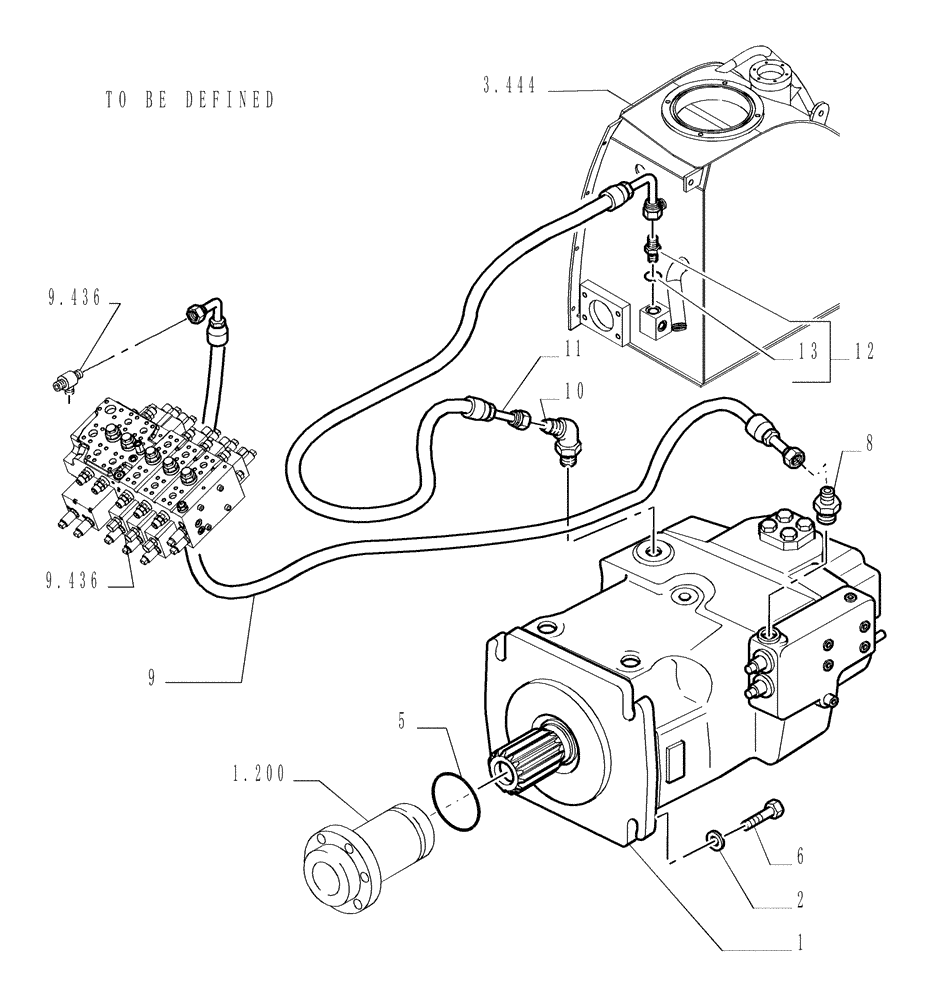

Запчасти Case 1850K (3.435[01]) - EQUIPMENT PUMP (04) - UNDERCARRIAGE

1

76040621

HYDRAULIC PUMP

Assy, See Pg. 2-3

1шт.

1

76040621R

REMAN-HYD PUMP

1850K SERIES 3 CRAWLER TIER 3 (11/06-)

1шт.

1

76040621C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

14497031

WASHER,M18 x 34

4шт.

5

14467681

O-RING,152mm ID x 6.262" OD x 3.53mm

(M152 ID x 3.53 Thk)

1шт.

6

15984431

BOLT,Hex, M18 x 1.5 x 55mm, Cl 10.9, Full Thd

4шт.

8

79053306

FITTING,M14 x 9/16"-18

1шт.

9

76071030

HYDRAULIC HOSE

1шт.

10

76071031

ELBOW

45°

1шт.

11

76071032

HYDRAULIC HOSE

1850 mm lg.

1шт.

12

79066944

HYD CONNECTOR

Assy

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
