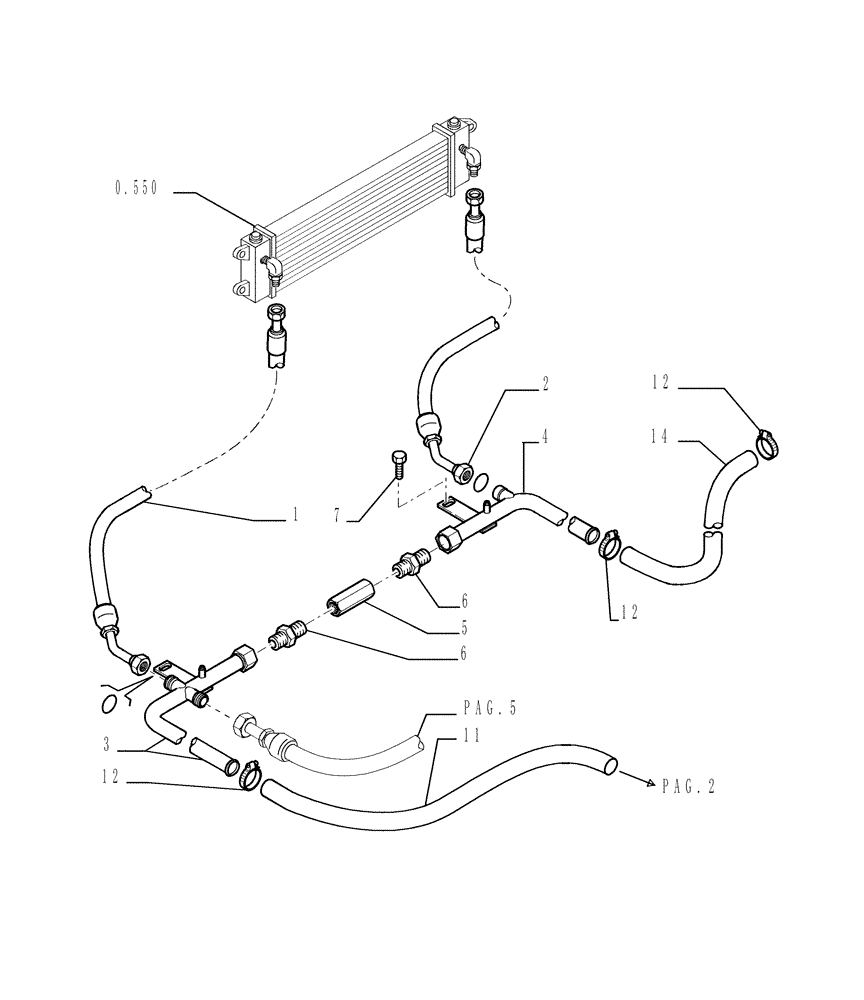

Запчасти Case 1850K (3.434[04]) - HYDRAULIC SYSTEM PIPING (04) - UNDERCARRIAGE

1

87382263

HYDRAULIC HOSE

2шт.

3

87370564

TUBE,32 mm DIA x 290, 172 mm L

LH

1шт.

4

87370565

TUBE,32 mm DIA x 290, 260 mm L

RH

1шт.

5

76040628

CHECK VALVE

5 Bar

1шт.

6

76053698

HYD CONNECTOR

2шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

87371578

HYDRAULIC HOSE,32.00 mm ID x 615.00 mm

Return LH

1шт.

12

79083845

HOSE CLAMP,32mm - 50mm, Worm Gear

32 x 50 mm

4шт.

14

87371579

HYDRAULIC HOSE,32.00 mm ID x 1160.00 mm

Return RH

1шт.
