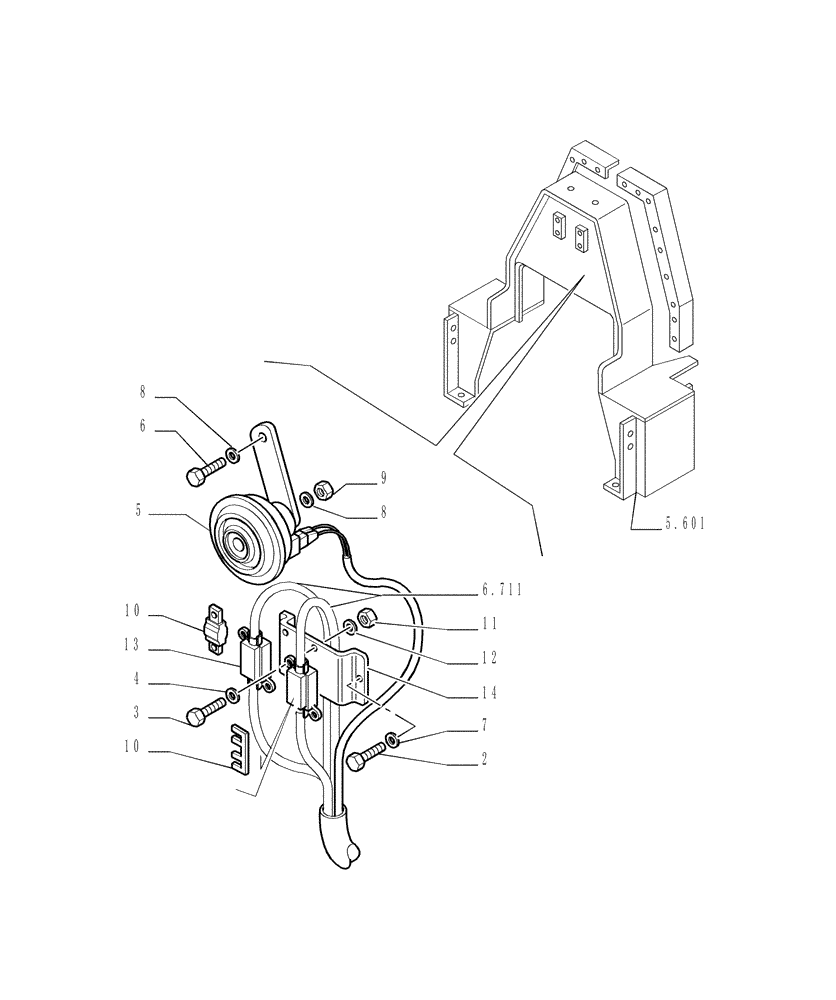

Запчасти Case 1850K (6.712[02]) - ELECTRIC COMPONENTS - HORN Electrical System / Decals

2

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

3

10445021

BOLT,Hex, M4 x 20mm, Cl 8.8, Full Thd

4шт.

4

12642831

WASHER

M4 x 12.5

4шт.

5

87620003

HORN

24V

1шт.

6

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

1шт.

7

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

8

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

16100821

NUT,M8, Cl 10

1шт.

10

71403803

FUSE

"Link" 80A

2шт.

11

12574021

NUT,M4 x .7, Cl 10

4шт.

12

10615379

LOCK WASHER,Ext Tooth, M5

4шт.

13

76045724

FUSE HOLDER

1шт.

14

79105215

BRACKET

1шт.

15

84182030

ELECTRIC CABLE

1шт.
