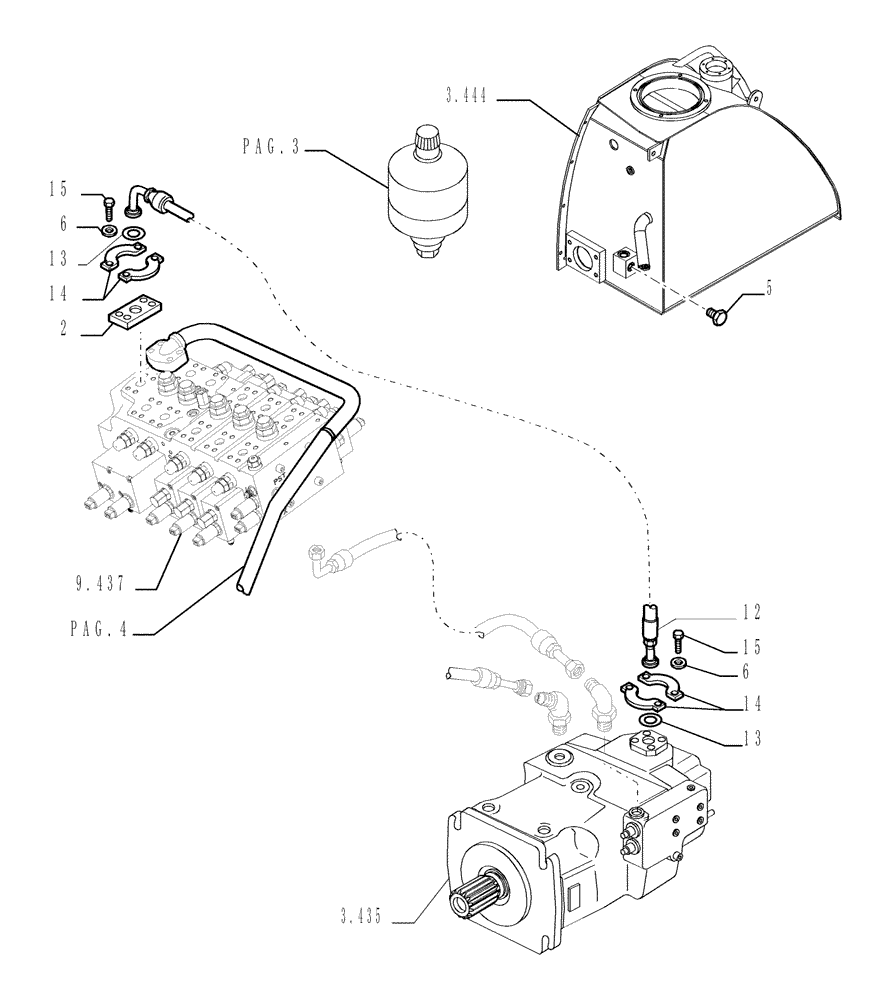

Запчасти Case 1850K (3.434[02]) - HYDRAULIC SYSTEM PIPING (04) - UNDERCARRIAGE

1

87353313

HYD TUBE,34 mm OD x 515 mm L

1шт.

2

87537952

BLOCK

1шт.

5

10119340

PLUG,M16 x 1.5 x 15, Brass

1шт.

6

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

12шт.

12

87738659

FLEXIBLE HOSE

Delivery

1шт.

13

70924110

O-RING

M24.99 ID x 3.53 Thk - In Alternative

2шт.

14

71404313

CLAMP,Half

4шт.

15

14422231

HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

17

87382260

HYDRAULIC HOSE

1шт.
