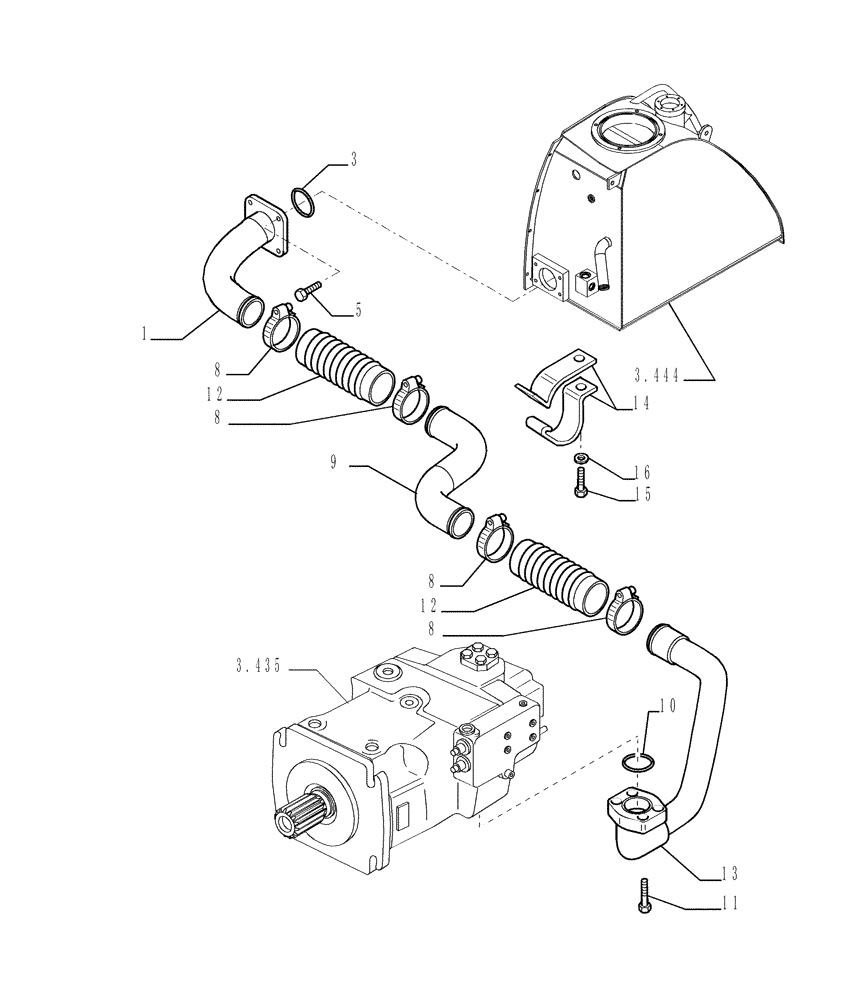

Запчасти Case 1850K (3.434[01]) - HYDRAULIC SYSTEM PIPING (04) - UNDERCARRIAGE

1

87353312

HYD TUBE,76 mm OD x 288.5, 220 mm L

Suction

1шт.

3

14465481

O-RING,3.234" ID x 3.512" OD x 0.139"

(M82.14 ID x 3.53 Thk)

1шт.

5

14311031

HEX SOC SCREW,M12 x 1.75 x 25mm, Cl 10.9, Full Thd

5шт.

8

79083849

HOSE CLAMP,M70-90

4шт.

9

76069244

HYD TUBE

1шт.

10

14465580

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

11

11118731

BOLT,Hex, M16 x 45, 10.9

4шт.

12

76069247

HOSE,76.00 mm ID x 200.00 mm

2шт.

13

76095167

HYD TUBE

Suction

1шт.

14

76069256

BRACKET

3шт.

15

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

16

79005244

WASHER,10.6mm ID x 25mm OD x 6mm Thk

3шт.
