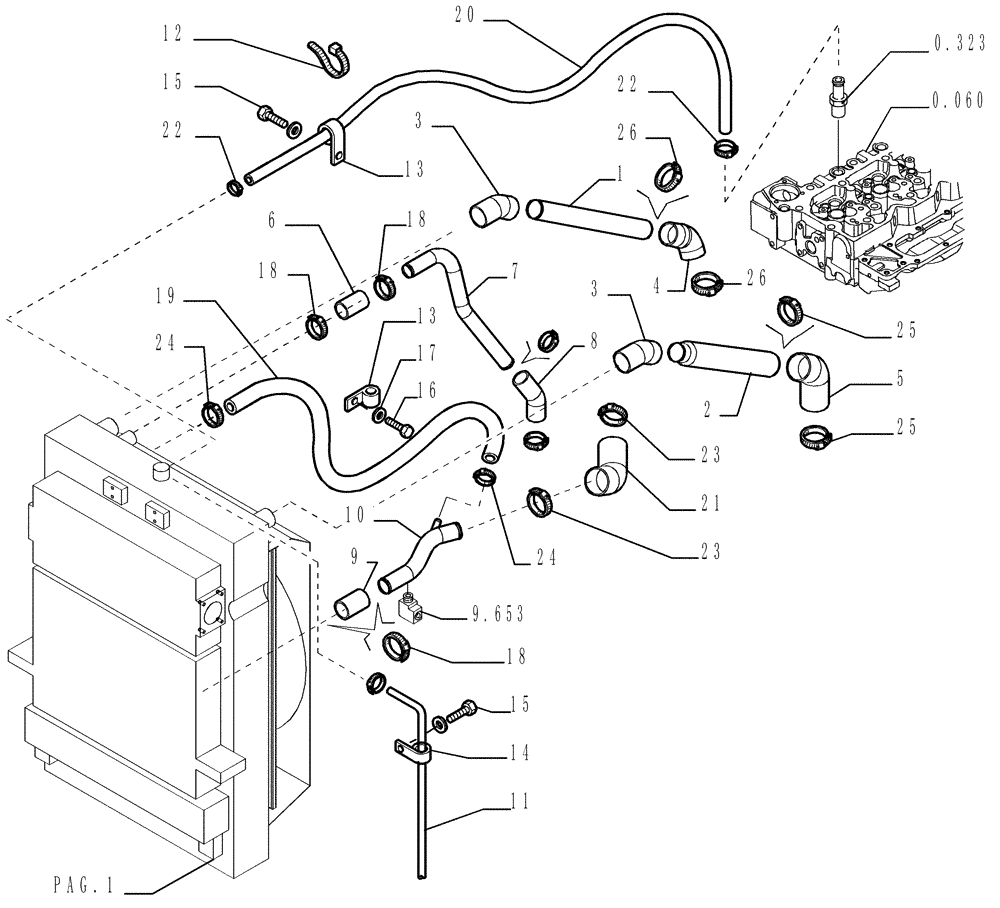

Запчасти Case 1850K (0.550[04]) - ENGINE COOLING SYSTEM - PIPING (01) - ENGINE

1

87363474

TUBE,60-62 mm DIA x 580 mm L

1шт.

2

87363475

TUBE,60-76 mm DIA x 550 mm L

To Aspiration

1шт.

3

87363471

FLEXIBLE HOSE

To After Cooler

2шт.

4

87363472

FLEXIBLE HOSE

To Compressor, Start Serial: D3984

1шт.

5

87363473

FLEXIBLE HOSE

Collector

1шт.

6

76089034

HOSE

1шт.

7

87358147

HYD TUBE,41 mm ID x 45 mm OD

1шт.

8

87358146

FLEXIBLE HOSE

1шт.

9

79106868

HOSE,50.00 mm ID x 95.00 mm

1шт.

10

87358148

HYD TUBE,46 mm ID x 50 mm OD

, Start Serial: D3984

1шт.

11

76052913

HOSE,8.00 mm ID x 1600.00 mm

1шт.

12

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

2шт.

13

10448890

CLAMP,36mm, Coat, P Type

36 mm

3шт.

14

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

3шт.

15

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

6шт.

16

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

17

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

18

79083847

HOSE CLAMP,M50-70

, Serial Range: -C3984

4шт.

19

76052928

HOSE,25.00 mm ID x 1350.00 mm

1шт.

20

76080730

HOSE

1шт.

21

87358145

FLEXIBLE HOSE

1шт.

22

79084753

HOSE CLIP,M10-18

2шт.

23

79083846

HOSE CLAMP,M40-60

4шт.

24

79083843

HOSE CLAMP,M20-35

2шт.

25

76088567

HOSE CLAMP,2.75" - 3.62", Worm Gear

2шт.

26

76086811

HOSE CLAMP,57mm - 79mm, Worm Clamp

6шт.
