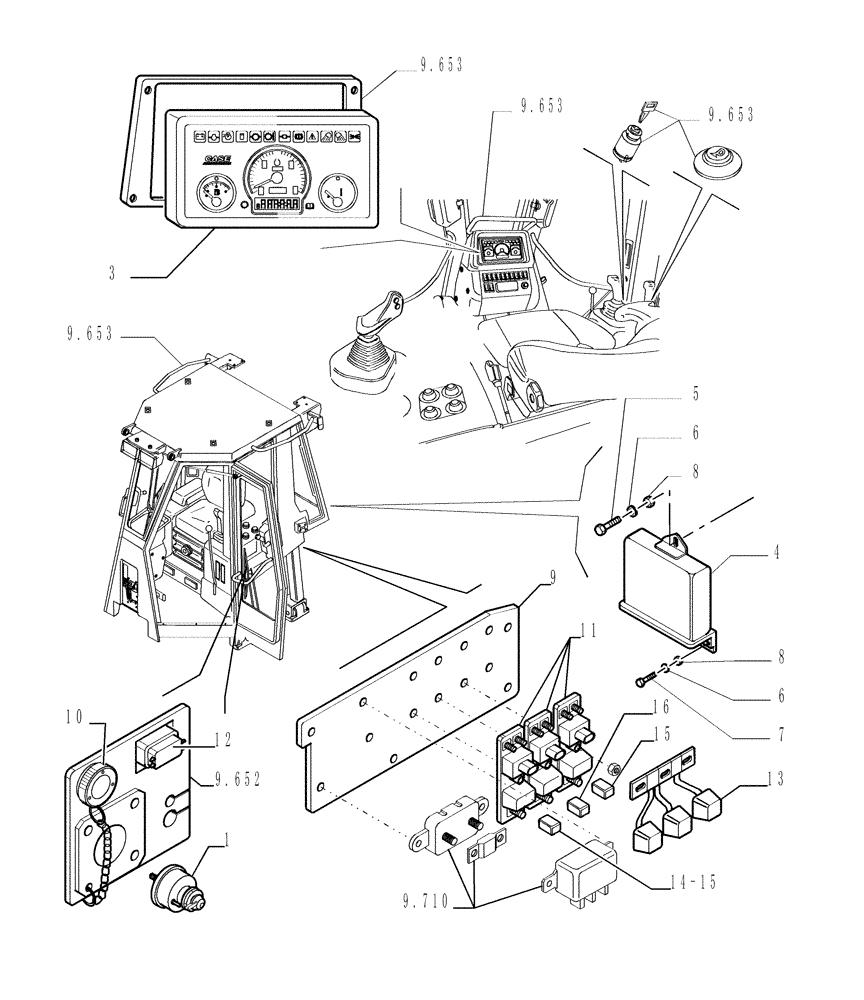

Запчасти Case 1850K (6.712[01]) - ELECTRIC COMPONENTS - DASHBOARD Electrical System / Decals

1

87409316

SWITCH

1шт.

3

87393284

INSTRUMENT CLUSTER

1шт.

3

87393284R

REMAN-INSTR CLUSTER

1850K, SERIES 3 CRAWLER TIER 3 (11/06-)

1шт.

3

87393284C

CORE-CLUSTER, INSTR

Return Number

1шт.

4

76092397

CONTROLLER

1шт.

4

76092397R

REMAN ELECT CONTROL

1850K SERIES 3 CRAWLER TIER 3, Electrical System / Decals (11/06-)

1шт.

4

76092397C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

6

10571574

LOCK WASHER

M6.1 x 1.6

3шт.

7

14303931

HEX SOC SCREW,M6 x 70mm, Cl 10.9

Hex Soc, M6 x 70, 10.9

2шт.

8

15896211

NUT,M6, Cl 8

3шт.

9

87608169

BRACKET

1шт.

10

87594483

PROTECTION CAP

1шт.

11

87315250

MODULE

3шт.

12

87594204

CONTACT HOUSING

1шт.

13

87601988

BAR

Bus

1шт.

14

87327350

FUSE,60 Amp

32V, 60A

1шт.

15

87327342

FUSE,30 Amp

32V, 30A

2шт.

16

87327346

FUSE,40A, Green

32V, 40A

1шт.
