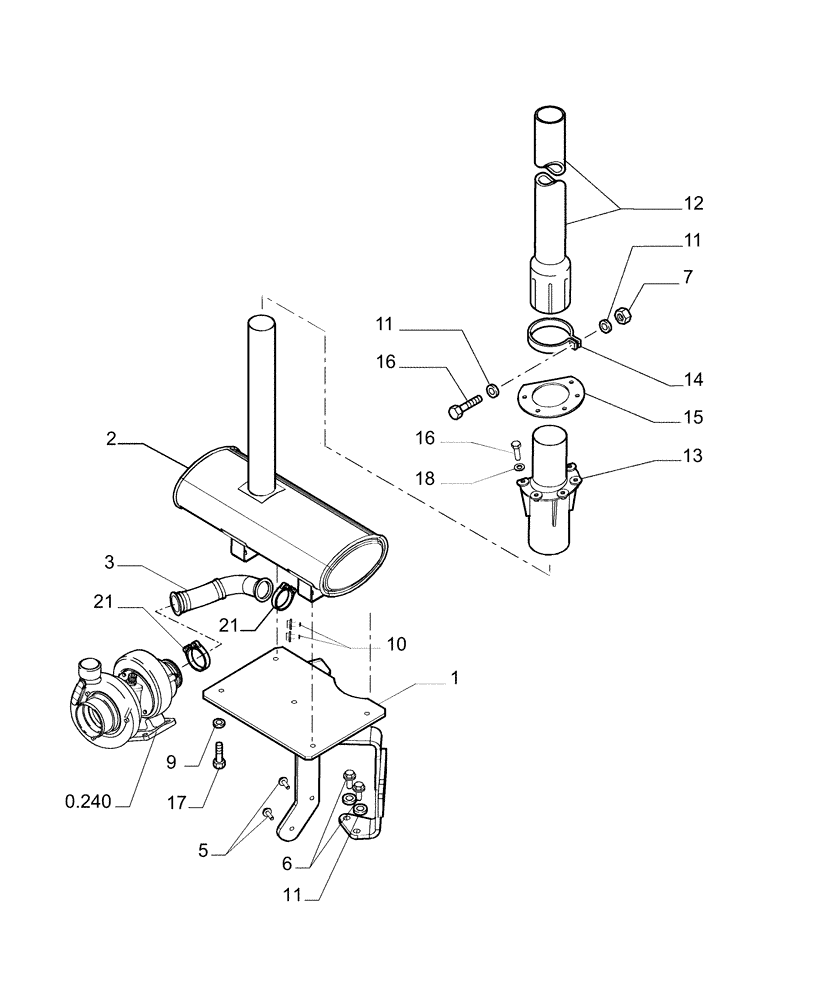

Запчасти Case 1850K (0.530[01]) - MUFFLER (01) - ENGINE

1

87356915

SUPPORT

1шт.

2

84254158

MUFFLER

1шт.

3

87476571

RIGID TUBE,60 mm DIA x 249.5, 161.85 mm L

1шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

6

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

2шт.

7

11701721

NUT,M10, Cl 10

1шт.

9

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

11

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

12

76095066

EXHAUST SYSTEM PIPE

1шт.

13

76079394

SUPPORT

1шт.

14

76076957

CLAMP

1шт.

15

76079395

BRACKET

1шт.

16

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

6шт.

17

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

21

76085819

CLAMP

2шт.
