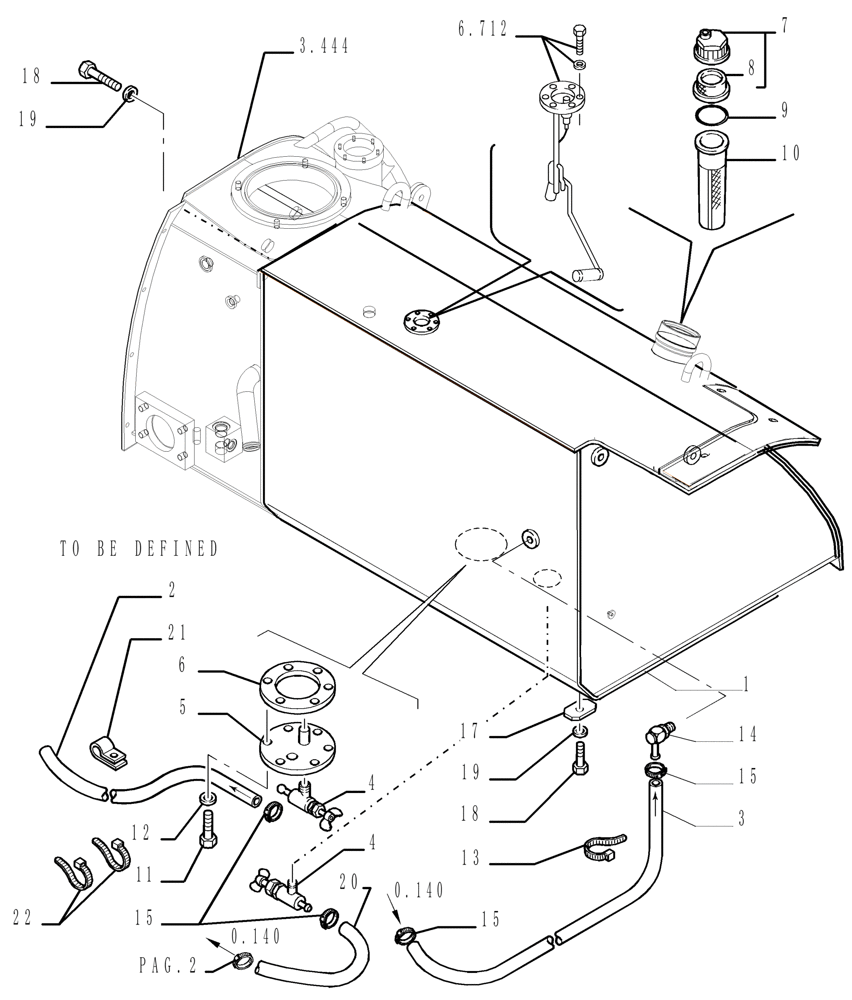

Запчасти Case 1850K (0.510[01]) - FUEL TANK (01) - ENGINE

1

87354122

FUEL TANK

1шт.

2

87383916

FLEXIBLE HOSE,11.00 mm ID x 3950.00 mm

1шт.

3

87383793

FLEXIBLE HOSE,7.50 mm ID x 2500.00 mm

1шт.

4

585834

DRAINCOCK/TAP SUPPLY

2шт.

5

76071222

FLANGE

1шт.

6

73100021

GASKET,3.17mm Thk

1шт.

7

79104494

CAP

Assy

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

4971843

CIRCLIP

1шт.

10

76079247

FILTER STRAINER

Fuel Intake

1шт.

11

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

12

70928460

WASHER

6шт.

13

79013422

CABLE TIE,145mm L

CABLE STRAP

2шт.

14

70933986

ELBOW

1шт.

15

79084753

HOSE CLIP,M10-18

5шт.

17

76046616

SHIM

1шт.

18

11116031

BOLT,Hex, M14 x 45, 10.9, Full Thd

6шт.

19

79005238

WASHER,14.8mm ID x 32mm OD x 7mm Thk

M14 x 32

6шт.

20

76031267

FUEL HOSE,11.00 mm ID x 450.00 mm

1шт.

21

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

30 mm

2шт.

22

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

4шт.

23

87442270

FITTING

Incl. O-Ring 87445405

3шт.

24

87400460

90 ELBOW

Incl. O-Ring P/N 87445404

1шт.
