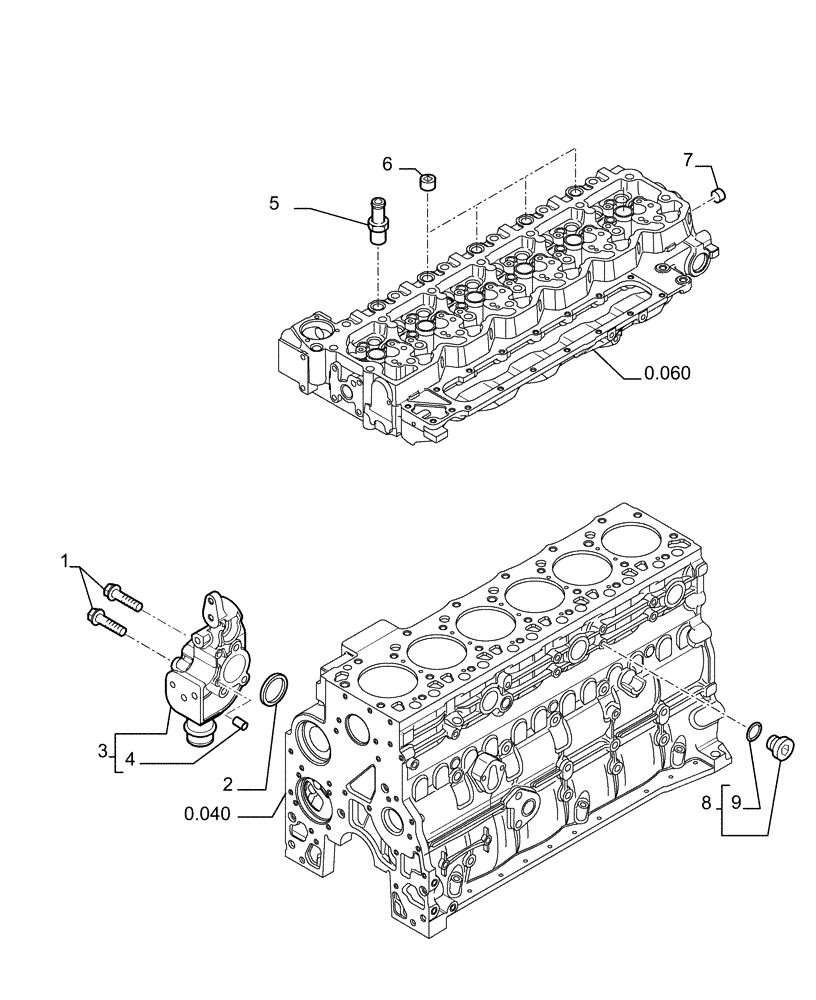

Запчасти Case 1850K (0.323[01]) - PIPING - ENGINE COOLING SYSTEM (01) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

2шт.

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2854938

FITTING

Assy - Water Inlet

1шт.

3

4892347

SUPPORT

Assy - Water Inlet

1шт.

4

4895576

DOWEL

2шт.

5

4895118

FITTING

Engine Coolant Vent

1шт.

6

4895078

PIPE PLUG,1/2"-14

4шт.

7

4895079

PIPE PLUG,3/4"-14

2шт.

7

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternative

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.
