(0.149[01]) - INJECTION EQUIPMENT - MANIFOLD AND LINES

Запчасти Case 1850K (0.149[01]) - INJECTION EQUIPMENT - MANIFOLD AND LINES (01) - ENGINE

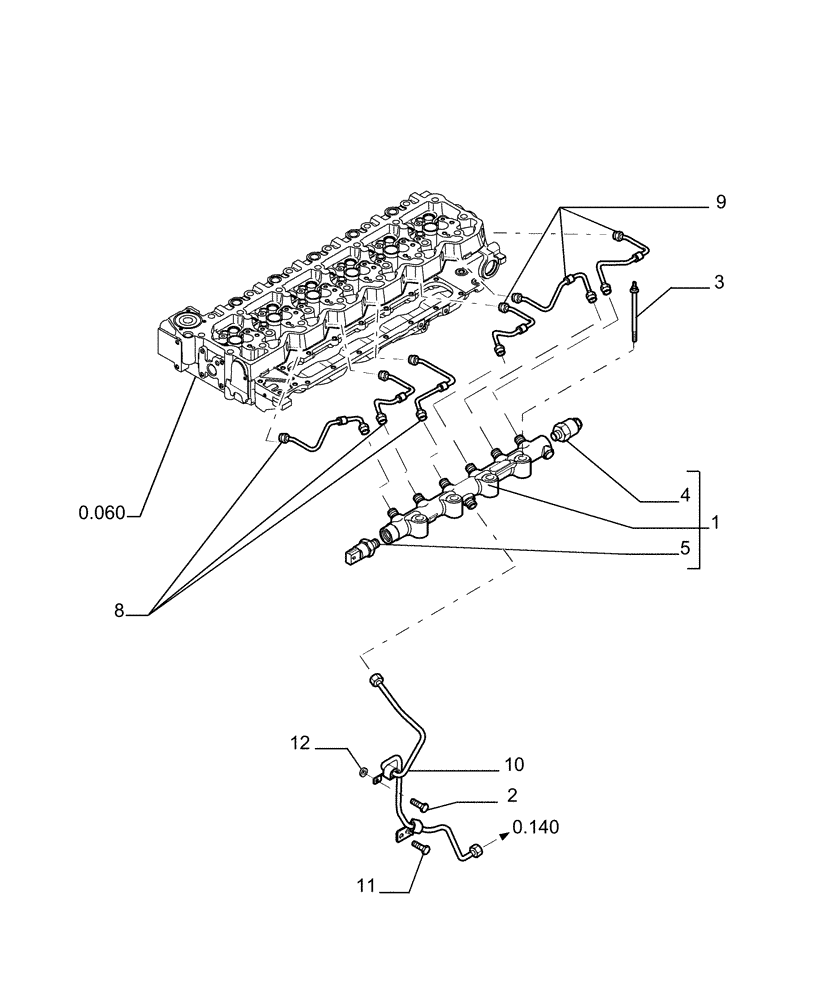

Схема запчастей Case 1850K - (0.149[01]) - INJECTION EQUIPMENT - MANIFOLD AND LINES (01) - ENGINE
5
10
8
0.060
1
4
12
0.140
3
9
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2854540

MANIFOLD

Assy

1шт.

2

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.

3

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

4шт.

4

2854543

VALVE PRESSURE RELIE

1шт.

5

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

Fuel Pressure

1шт.

8

2854549

INJECTION PIPE

3шт.

9

2854544

INJECTION PIPE

3шт.

10

2854552

INJECTION PIPE

1шт.

11

4896484

SCREW

1шт.

12

2852434

SPACER

1шт.

Выбрано товаров: 10
