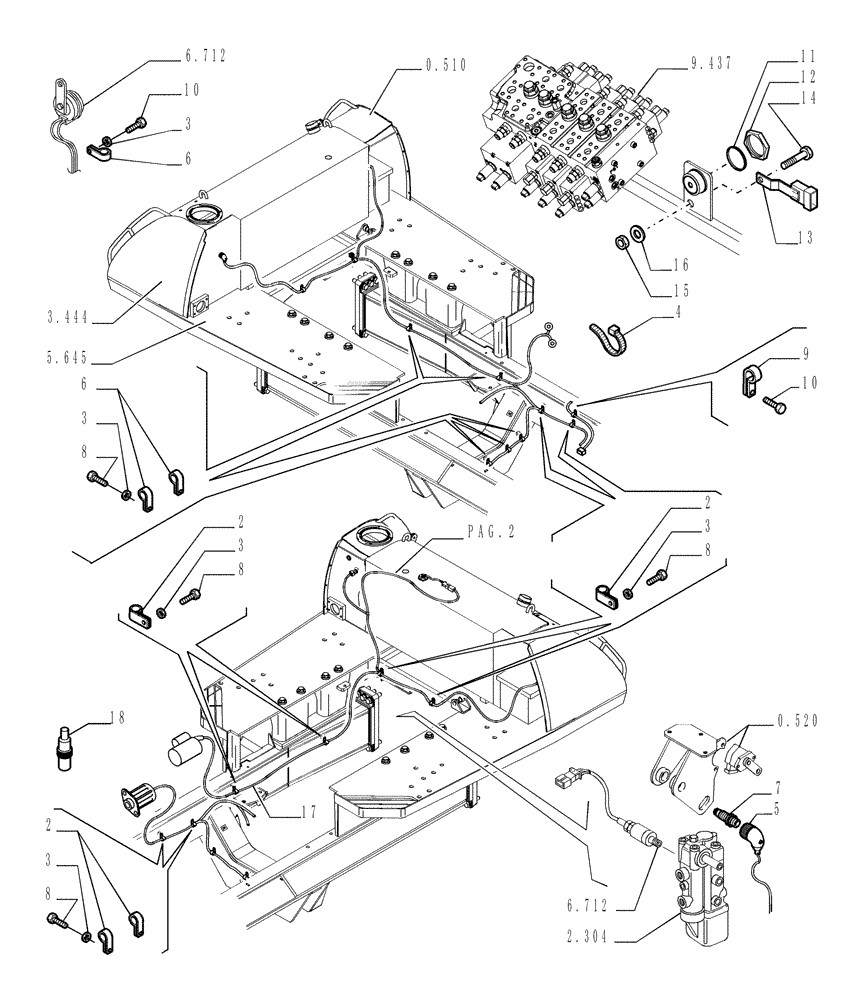

Запчасти Case 1850K (6.711[01]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals

1

84185503

WIRE HARNESS

Machine

1шт.

2

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12 mm dia.

7шт.

3

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

11шт.

4

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

4шт.

5

87490927

WIRE HARNESS

1шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

4шт.

7

76040484

SWITCH

Proximity

1шт.

8

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

9шт.

9

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

10

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

11

76047486

WASHER

HD30

1шт.

12

76047485

NUT

HD30

1шт.

13

76075559

BRACKET

1шт.

14

10902431

SCREW,Hex, M6 x 20mm, Cl 10.9

1шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

16

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

17

87564643

WIRE HARNESS

1шт.

18

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

19

72210833

FLEXIBLE HOSE

1шт.
