Запчасти Case 1850K (1.220[01]) - TRANSMISSION LUBRICATION SYSTEM Hydrostatic Transmission

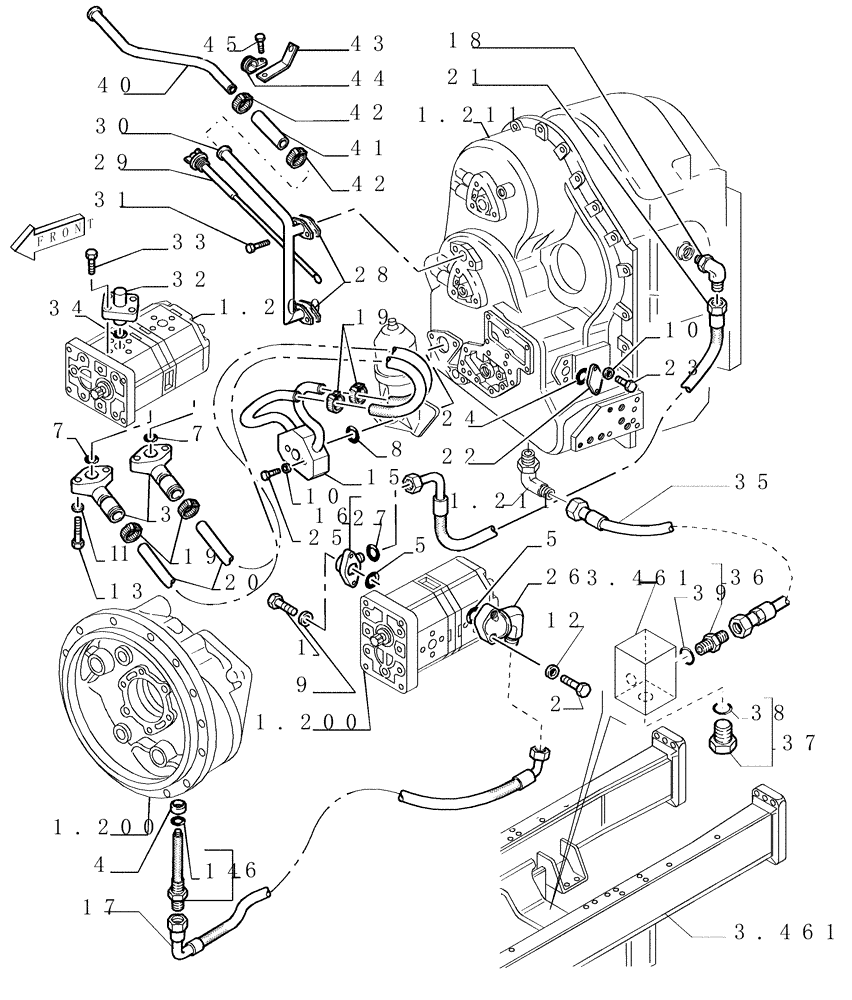

Схема запчастей Case 1850K - (1.220[01]) - TRANSMISSION LUBRICATION SYSTEM Hydrostatic Transmission
front
3
8
18
31
4
32
21
23
43
7
34
15
10
38
22
1
36
45
37
35
42
33
42
5
2
26
17
19
1.200
30
40
10
39
13
5
19
29
27
16
24
1.211
3.461
1.211
3.461
1.200
1.200
1
44
7
20
25
28
1
9
12
6
14
41

Артикул

Название

Примечание

Количество

1

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

2шт.

2

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

3

76046684

TUBE

Suction

2шт.

4

8295459

SEAL

1шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

6

76052997

FILTER

Assy

1шт.

7

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

(M21.89 ID x 2.62 Thk)

2шт.

8

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

(M31.42 ID x 2.62 Thk)

1шт.

9

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

10

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

11

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

2шт.

13

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

4шт.

14

14438185

O-RING,24mm ID x 3mm

1шт.

15

76087679

TUBE

, Serial Range: -C3984

1шт.

76087679 = 76095166 + 15888831(Qta=2)

1шт.

15

76095166

TUBE

, Start Serial: D3984

1шт.

16

71312210

FLANGE

Assy

1шт.

17

76053841

HYDRAULIC HOSE

1шт.

18

79067022

ELBOW

90°

1шт.

19

79083846

HOSE CLAMP,M40-60

4шт.

20

76046686

HYDRAULIC HOSE,38.00 mm ID x 140.00 mm

Suction

2шт.

21

76027767

FLEXIBLE HOSE

1шт.

22

79111478

PLATE

1шт.

23

15970531

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

24

14457581

O-RING,0.799" ID x 0.103" Width

(M20.29 ID x 2.62 Thk)

1шт.

25

15971331

BOLT,Hex, M10 x 1.25 x 75mm, Cl 10.9

, Serial Range: -C3984

2шт.

25

15888831

SCREW,Hex, M10 x 1.25 x 70mm, Cl 10.9

, Start Serial: D3984

2шт.

26

79113253

HYD CONNECTOR

1шт.

27

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

28

76028093

SEAL,0.4mm Thk

2шт.

29

76090587

DIPSTICK

1шт.

30

76095168

TUBE

1шт.

31

15970634

BOLT,Hex, M10 x 1.25 x 22mm, Cl 10.9, Full Thd

4шт.

32

76017156

FLANGE

Suction

1шт.

33

14359231

SCREW,M8 x 22mm, Cl 10.9

M8 x 22

4шт.

35

76068229

HYDRAULIC HOSE

1шт.

36

79066944

HYD CONNECTOR

Assy

1шт.

37

10118840

PLUG,M22 x 1.5 x 18, Brass

Assy

1шт.

38

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

39

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

40

76090586

TUBE

1шт.

41

76075203

HYDRAULIC HOSE,30.00 mm ID x 60.00 mm

1шт.

42

79083844

HOSE CLAMP,25mm - 40mm, Worm Gear

25 x 40 mm

2шт.

43

76090588

BRACKET

1шт.

44

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

30 mm

1шт.

45

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 47
