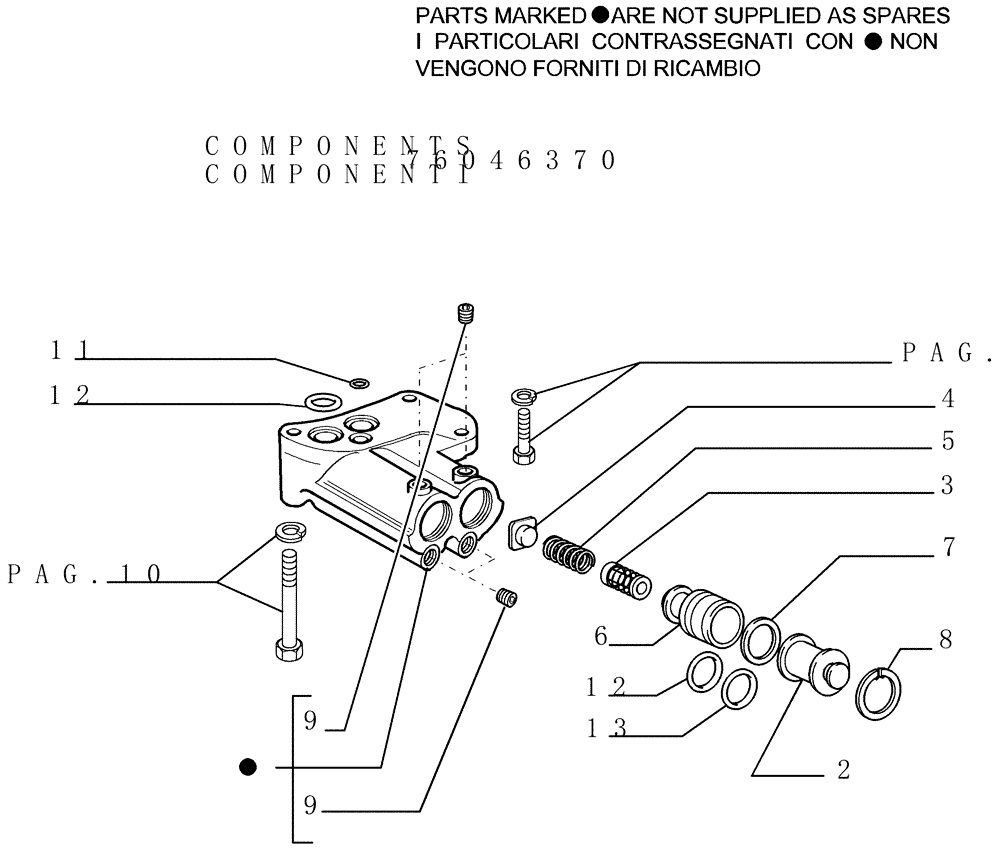

Запчасти Case 1850K (1.211[12]) - TRANSMISSION - CONTROL VALVE Hydrostatic Transmission

2

79040809

PLUG

2шт.

3

79042389

SPRING

2шт.

4

79042386

CAP WASHER

2шт.

5

79042388

SPRING

2шт.

6

586171

PISTON

2шт.

7

79012577

SPRING WASHER

1шт.

8

11058676

SNAP RING,M28, Int

2шт.

9

14326050

PLUG,Pipe, Hex Skt, M10 x 1.25 x 11mm, Taper Thd, AL

M10 x 1.25

4шт.

11

14453181

O-RING,0.489" ID x 0.07" Width

(M12.42 ID x 1.78 Thk)

1шт.

12

14453681

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

4шт.

13

14453781

O-RING,21.95mm ID x 1.78" Width

(M21.95 ID x 1.78 Thk)

2шт.
