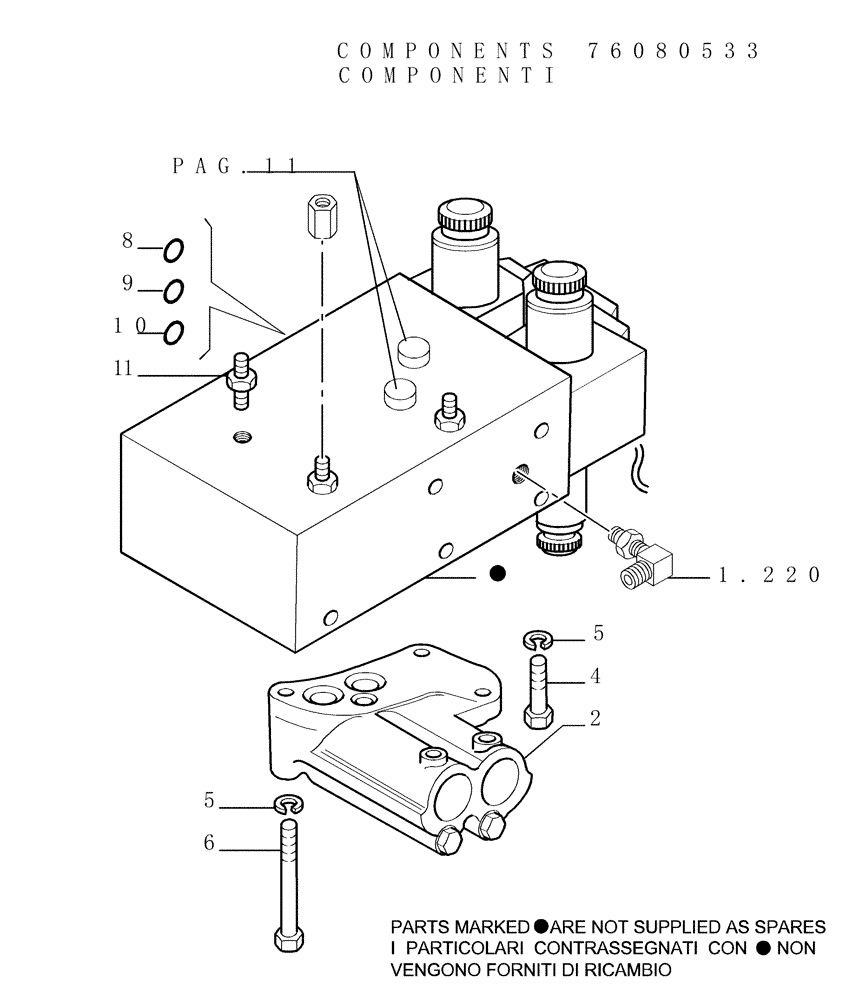

Запчасти Case 1850K (1.211[10]) - TRANSMISSION - CONTROL VALVE Hydrostatic Transmission

2

76046370

DAMPING VALVE

Assy, See Pg. 12

1шт.

4

15970931

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9

2шт.

5

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

6

11343731

SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9

1шт.

8

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

6шт.

9

14455381

O-RING,10.82mm ID x 1.78" Width

1шт.

10

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

1шт.

11

76054684

HYD CONNECTOR

3шт.
