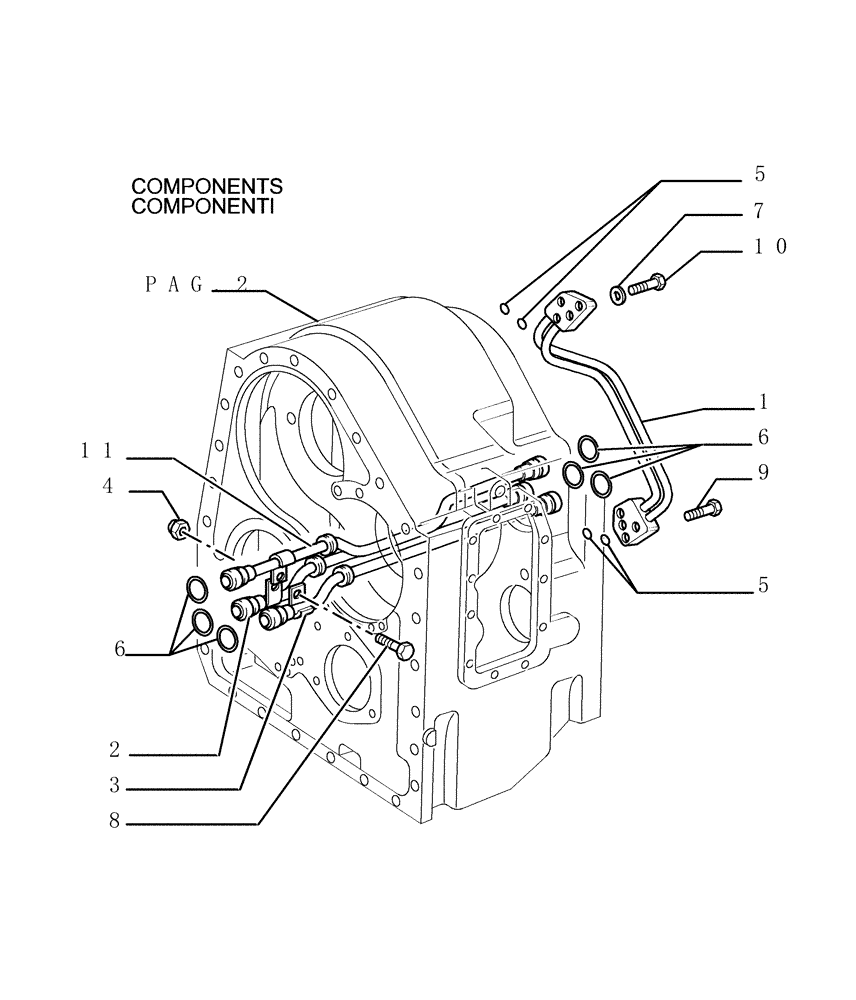

Запчасти Case 1850K (1.211[08]) - TRANSMISSION - PIPING Hydrostatic Transmission

1

4962419

TUBE

1шт.

2

4964148

TUBE

1шт.

3

4979157

TUBE

1шт.

4

14048221

NUT,M8 x 1.25, Cl 10

1шт.

5

14456881

O-RING,0.362" ID x 0.103" Width

(M9.19 ID x 2.62 Thk)

4шт.

6

14456981

O-RING,0.424" ID x 0.103" Width

6шт.

7

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

9

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

10

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

11

79038355

TUBE,525 mm Length

1шт.
