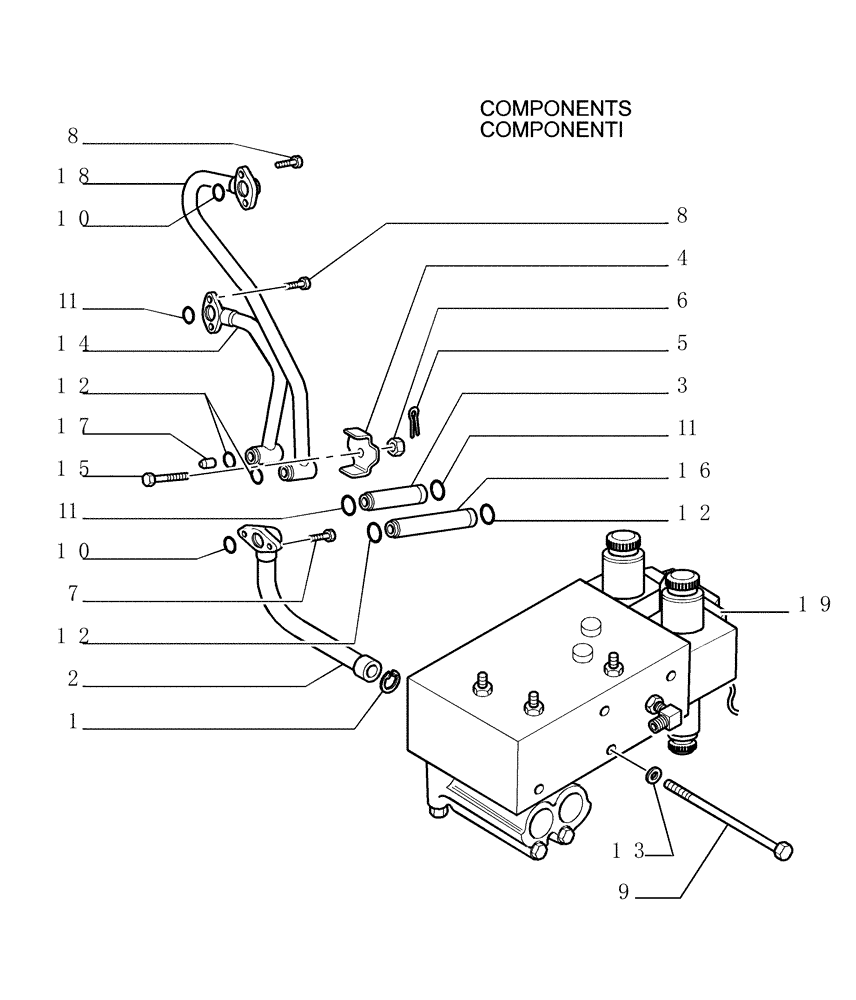

Запчасти Case 1850K (1.211[06]) - TRANSMISSION - PIPING Hydrostatic Transmission

1

586832

CIRCLIP

1шт.

2

586838

TUBE,8 mm ID, 10 mm OD, 190, 80 mm Length

1шт.

3

586839

TUBE,8 mm ID, 10 mm OD, 77 mm Length

1шт.

4

4965899

RETAINER

1шт.

5

10734401

COTTER PIN,M2 x 22

1шт.

6

10793111

NUT

M10 x 1.25 x 10

1шт.

7

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

8

10902534

SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd

4шт.

9

15972931

BOLT,Hex, M10 x 1.25 x 160mm, Cl 10.9

5шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

(M9.19 ID x 2.62 Thk)

2шт.

11

14456981

O-RING,0.424" ID x 0.103" Width

3шт.

12

14457081

O-RING,12.37mm ID x 2.62mm

(M12.37 ID x 2.62 Thk)

4шт.

13

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

5шт.

14

79086549

TUBE,12 mm ID, 14 mm OD, 138.6, 93.9 mm Length

1шт.

15

16005531

SCREW,M10 x 1.25 x 50mm, Cl 10.9

M10 x 1.25 x 50

1шт.

16

79032376

TUBE,12 mm ID, 13.9 mm OD, 110 mm Length

1шт.

17

79038354

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

18

79038732

TUBE

1шт.

19

76080533

CONTROL VALVE

Assy, See Pg. 10-11-12

1шт.
