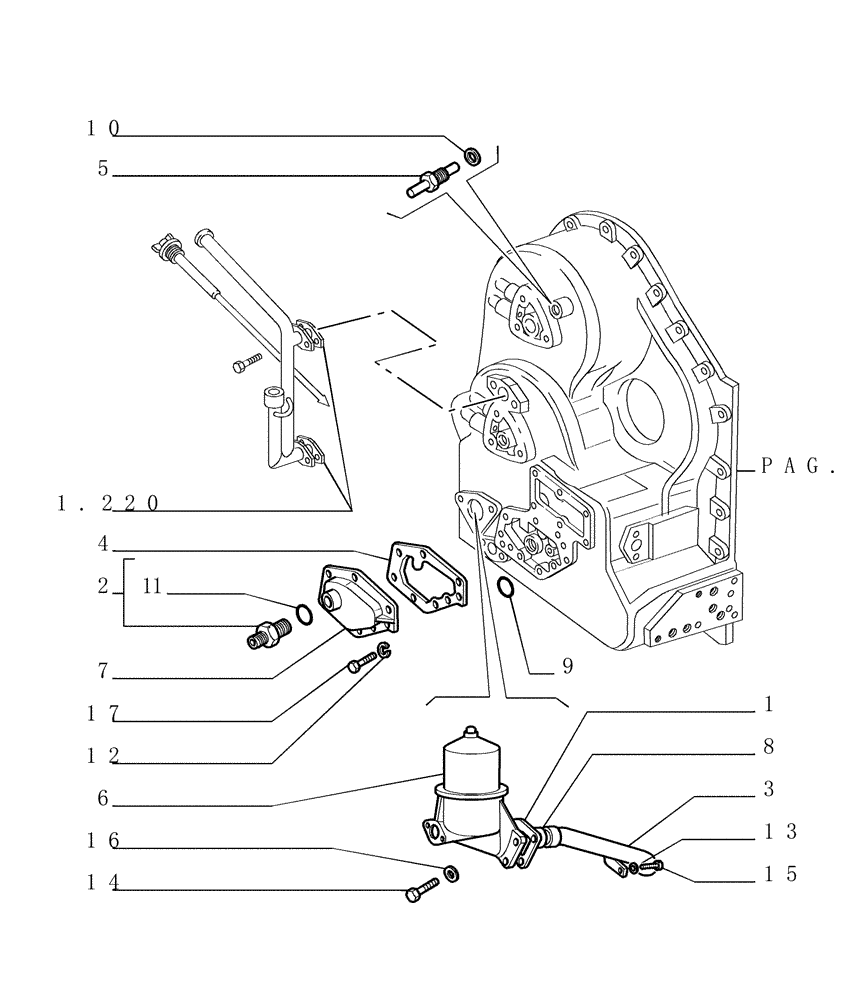

Запчасти Case 1850K (1.211[05]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

76028084

GASKET,0.4mm Thk

1шт.

2

79066946

HYD CONNECTOR

Assy

1шт.

3

4956208

TUBE

1шт.

4

76028087

MANIFOLD GASKET

1шт.

5

4972664

HYD CONNECTOR

1шт.

6

1931179

FILTER ASSY

See SGR.1.211 Pg. 13

1шт.

7

79106111

COVER

1шт.

8

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

9

14456881

O-RING,0.362" ID x 0.103" Width

(M9.19 ID x 2.62 Thk)

3шт.

10

79086481

WASHER,18.7mm ID x 26mm OD x 1.5mm Thk

1шт.

11

14438185

O-RING,24mm ID x 3mm

1шт.

12

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

13

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

14

15540531

SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

15

15970534

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

16

14496731

WASHER,M12 x 24 x 2.5 Thk

3шт.

17

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.
