(9.670[01]) - HEATED SEAT AT MECHANICAL SOSPENSION KAB 835 - COMPONENTS - OPTIONAL CODE 784337011

Запчасти Case 1850K (9.670[01]) - HEATED SEAT AT MECHANICAL SOSPENSION KAB 835 - COMPONENTS - OPTIONAL CODE 784337011 (19) - OPTIONS

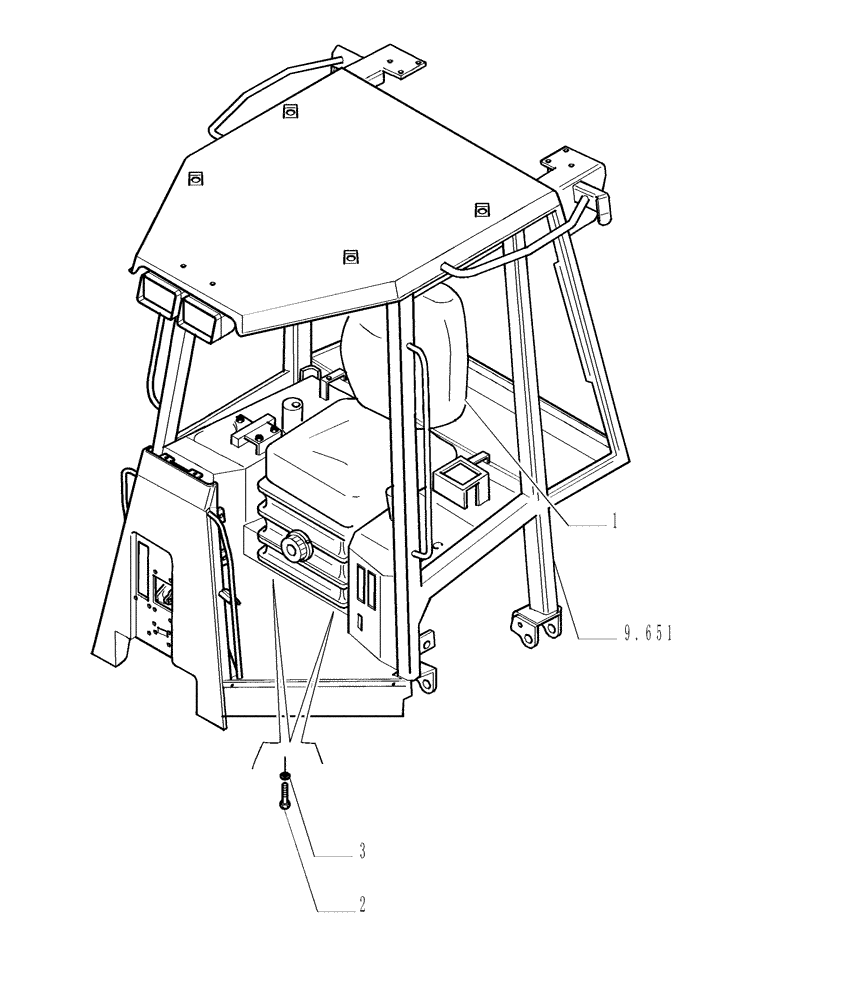

Схема запчастей Case 1850K - (9.670[01]) - HEATED SEAT AT MECHANICAL SOSPENSION KAB 835 - COMPONENTS - OPTIONAL CODE 784337011 (19) - OPTIONS
1
2
3
9.651
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76095254

DRIVER SEAT

Assy, See Pg. 2

1шт.

2

14306931

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 10.9, Full Thd

4шт.

3

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

87314951

SUPPORT

2шт.
