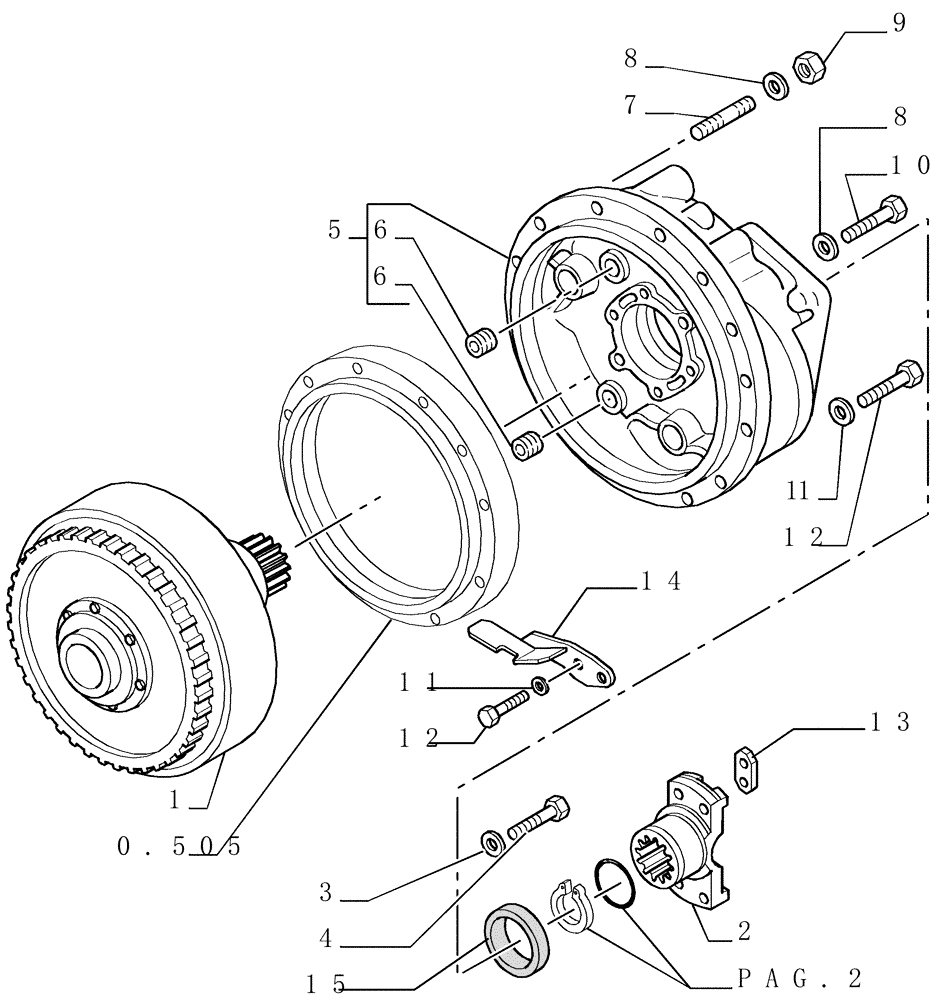

Запчасти Case 1850K (1.200[01]) - UNIT TORQUE CONVERTER Hydrostatic Transmission

1

76040600

TORQUE CONVERTER

Assy, See Pg. 4

1шт.

1

76040600R

REMAN-TORQUE CONVERT

ER 1850K, w/Tier 2 Eng.

1шт.

1

76040600C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

2

76045594

SLEEVE

Shaft

1шт.

3

592075

WASHER,13.7mm ID x 22mm OD x 1.5mm Thk

6шт.

4

586977

BOLT

6шт.

5

76069552

COVER

Assy

1шт.

6

14325501

PLUG

M28 x 1.5 x 13

3шт.

7

16731330

STUD

M10 x 30

1шт.

8

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

25шт.

9

11701721

NUT,M10, Cl 10

1шт.

10

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

24шт.

11

12638631

WASHER,10.6mm ID x 18mm OD x 2mm Thk

2шт.

12

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

13

592915

CONTROL PANEL

1шт.

14

76052996

DEFLECTOR

1шт.

15

76006357

SEAL,90mm ID x 115mm OD x 13mm Thk

1шт.
