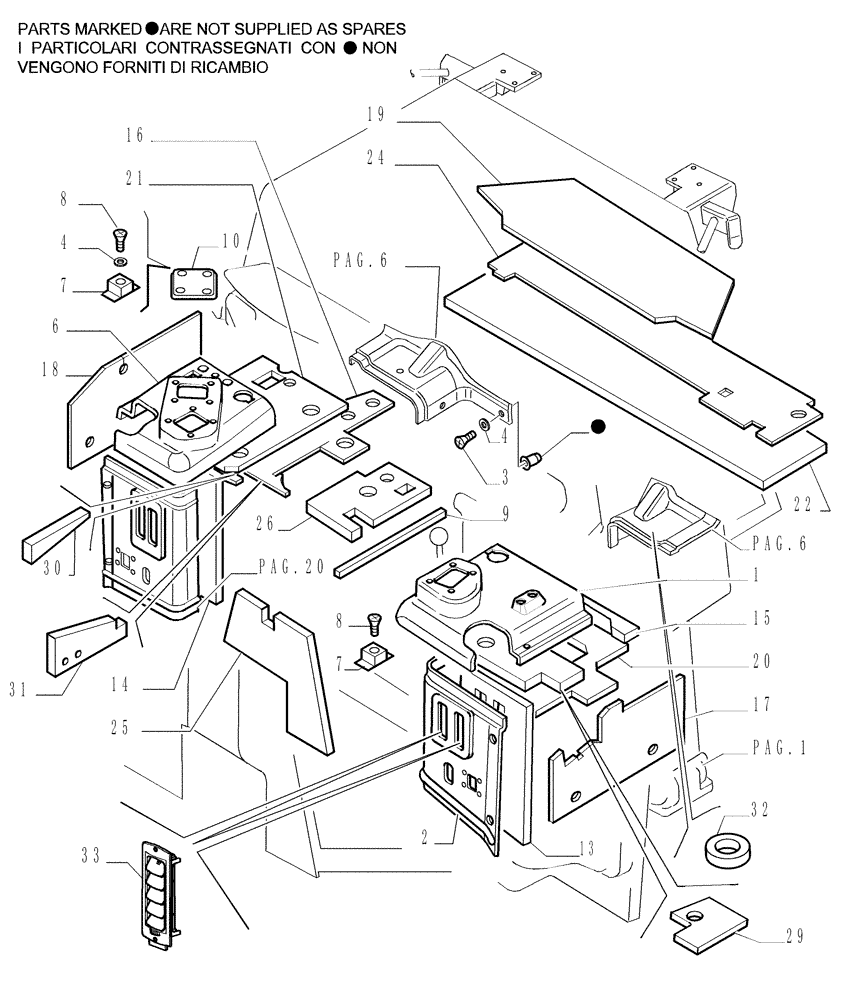

Запчасти Case 1850K (9.654[18]) - ROPS CAB - COVERING - OPTIONAL CODE 784110131 (19) - OPTIONS

1

76067959

CONSOLE

Upper LH

1шт.

2

76067956

PANEL

Front LH

1шт.

3

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

16шт.

4

79076208

WASHER

Nylon

20шт.

6

76301106

GUARD

Upper RH

1шт.

7

76047274

NUT,M6 x 1

8шт.

8

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

8шт.

9

76067665

SEAL

1шт.

10

76067962

COVER

Controls

1шт.

13

76067326

INSULATING PANEL

1шт.

14

76067327

INSULATING PANEL

1шт.

15

76301069

PANEL

Upper LH

1шт.

16

76301070

FOAM INSULATION

Upper RH

1шт.

17

76301077

FOAM INSULATION

Side LH

1шт.

18

76301076

FOAM INSULATION

Side RH

1шт.

19

76067491

INSULATING PANEL

1шт.

20

76301068

PANEL

Upper LH

1шт.

21

76301071

FOAM INSULATION

Upper RH

1шт.

22

76067498

INSULATING PANEL

Outer Rear

1шт.

24

76301079

FOAM INSULATION

Inner Rear

1шт.

25

76067506

INSULATING PANEL

Dashboard

1шт.

26

76301075

FOAM INSULATION

Outer RH

1шт.

29

76079008

FOAM INSULATION

Upper LH

1шт.

30

76079009

FOAM INSULATION

Upper RH

1шт.

31

76079010

FOAM INSULATION

Outer RH

1шт.

32

76079012

FOAM INSULATION

2шт.

33

76079036

VENT

4шт.
