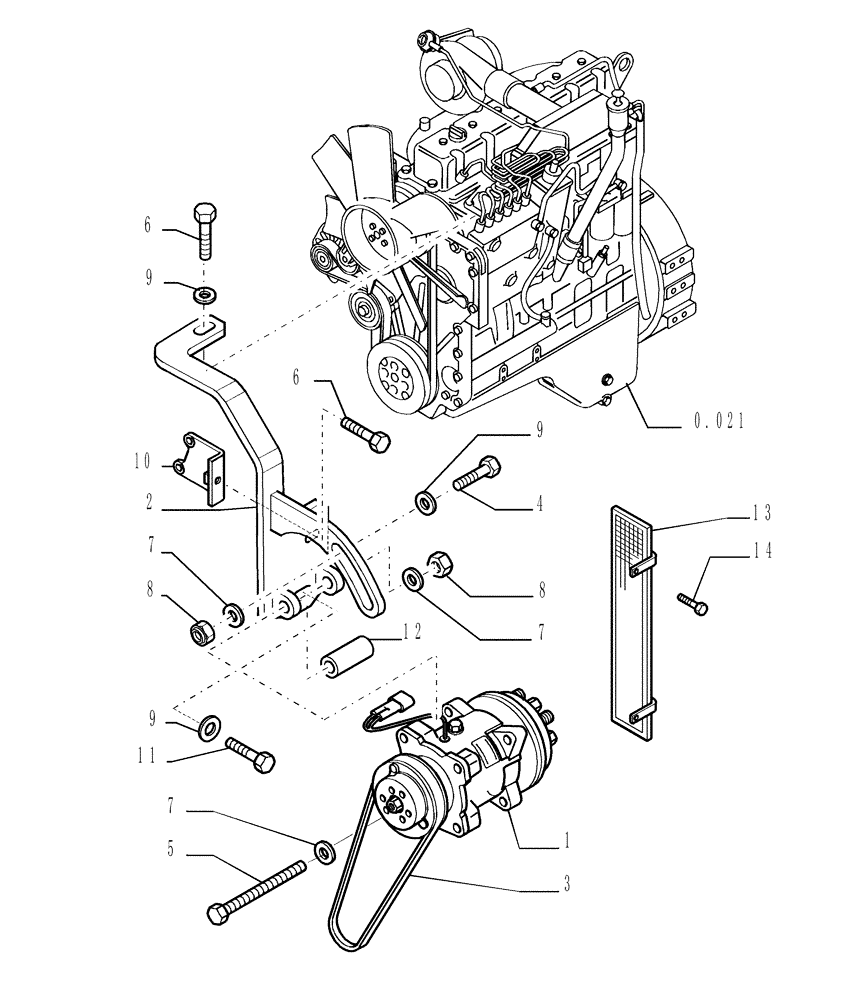

Запчасти Case 1850K (9.654[03]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 784110131 (19) - OPTIONS

1

76047005

AIRCOND. COMPRESSOR

1шт.

76047005R

REMAN-COMPRESSOR

1850K TIER 2 (3/03-)

1шт.

76047005C

CORE-COMPRESSOR

Return Number

1шт.

2

76080540

SUPPORT

Compressor

1шт.

3

76080876

BELT,13.00 mm W x 1367.00 mm L

Transmission

1шт.

4

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

1шт.

5

11108831

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

6

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

7шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

9

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

10

87335163

BRACKET

1шт.

11

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

12

76078020

SPACER

1шт.

13

76079366

GRILLE

LH

1шт.

14

16040831

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.
