(9.653[33]) - ROPS CAB - DOOR - OPTIONAL CODE 784110191

Запчасти Case 1850K (9.653[33]) - ROPS CAB - DOOR - OPTIONAL CODE 784110191 (19) - OPTIONS

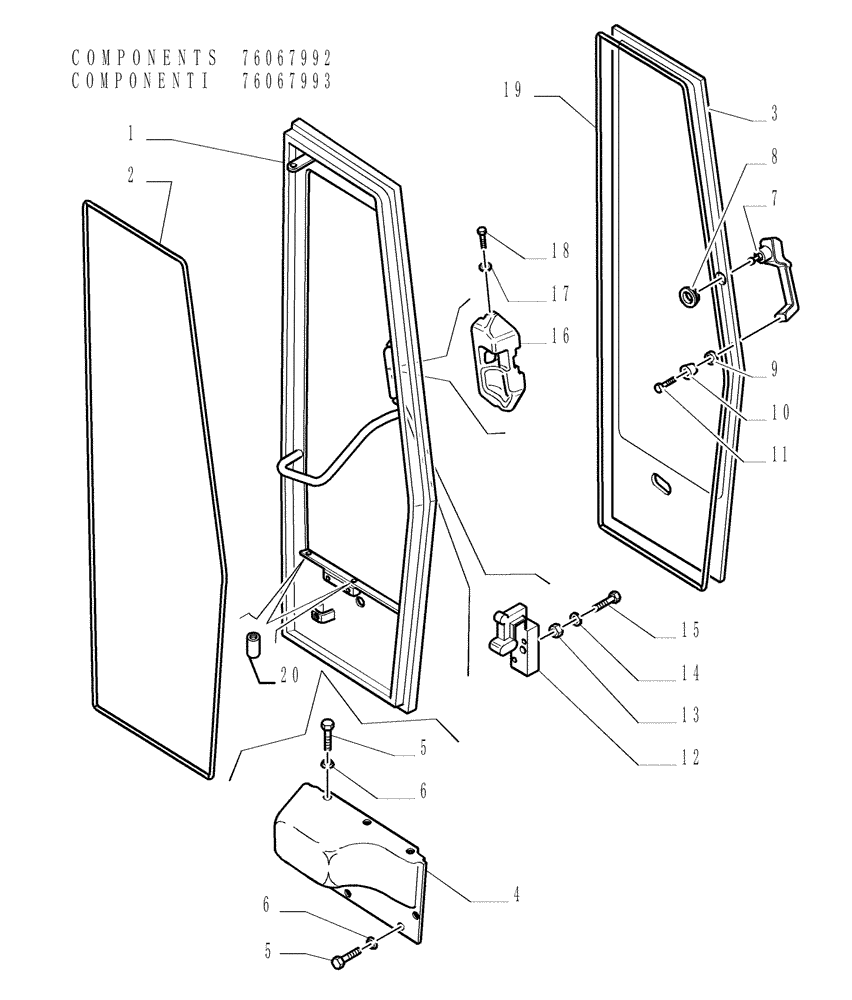

Схема запчастей Case 1850K - (9.653[33]) - ROPS CAB - DOOR - OPTIONAL CODE 784110191 (19) - OPTIONS
9
15
18
componenti
8
16
1
13
5
2
14
17
20
19
76067993
7
12
4
1
6
76067992
3
components
1
10
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76301258

RH CAB DOOR

FRAME ONLY; Gray

1шт.

1

76301232

LH CAB DOOR

FRAME ONLY; Gray

1шт.

2

76067154

DOOR SEAL

1шт.

3

76301251

GLASS

RH; 76301250 and 76301251 glass both have wiper mtg holes located on the side of the glass, not on the bottom. For glass that has wiper mtg holes on the bottom order 76067084 LH glass or 76067085 RH glass

1шт.

3

76301250

GLASS

LH; 76301250 and 76301251 glass both have wiper mtg holes located on the side of the glass, not on the bottom. For glass that has wiper mtg holes on the bottom order 76067084 LH glass or 76067085 RH glass

1шт.

4

76301303

SHIELD

Lower LH

1шт.

4

76301302

SHIELD

Lower RH

1шт.

5

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

10шт.

6

79076208

WASHER

Nylon

8шт.

7

76067152

HANDLE

2шт.

8

76067731

SEAL

1шт.

9

76067732

SPACER

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

13276411

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8

2шт.

12

76301189

LH DOOR LOCK

1шт.

12

76301188

RH DOOR LOCK

1шт.

13

16100814

NUT,M8, Cl 8, DAC

4шт.

14

14496534

WASHER,M8

x 17

4шт.

15

14442321

SCREW,Flat Csk Hd, M8 x 1.25 x 35mm, Cl 8.8

4шт.

16

76067932

COVER

1шт.

16

76067933

COVER

1шт.

17

79076208

WASHER

Nylon

2шт.

18

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

2шт.

19

76067486

GASKET

1шт.
